Cosmetic Bottles and Jars, with Their Published Dimensions

Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Product groups	169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more
Formats	514 across 169 plates
Capacity	5 – 800 ml · 3 – 330 g (cream jars, measured by weight)
Neck	Printed per format; 12 – 85 mm across the range we can read
Materials	ABS, HDPE, LDPE, PE, PET, PETG, PP
Table columns	They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes
Decoration	Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes
Order quantity	Confirmed per project — it depends on the format, the tooling and the decoration
Sampling	Available. Formats already in tooling sample fastest; a custom prototype follows design approval

Applications beyond the cosmetic category

The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.

The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.

What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.

PET Flip-top Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 40 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 40PET Flip-top Bottles

1 format · 100 ml

PET Flip-top Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Flip-top Bottle 01	100 ml	PET	24 mm	48.6 × 101 mm	68.2 / 85.8 mm	15 g	27.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

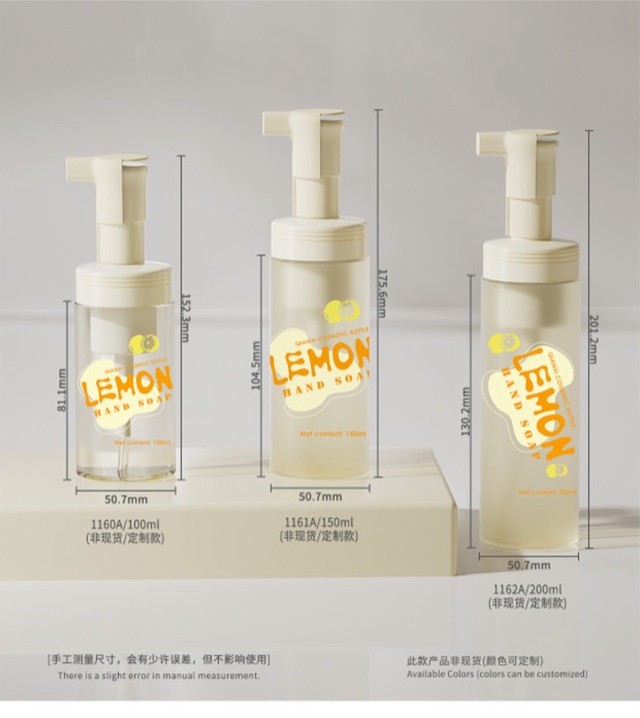

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 41 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 41PET Foam Bottles

3 formats · 100–200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	100 ml	PET	43 mm		81.1 / 96.3 mm	36 g	67.4 g	Enquire
Foam Bottle 02	150 ml	PET	43 mm	50.7 × 175.6 mm	104.5 / 119.6 mm	36 g	67.4 g	Enquire
Foam Bottle 03	200 ml	PET	43 mm	50.7 × 201.2 mm	130.2 / 145.2 mm			Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 42 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 42PET Foam Bottles

3 formats · 100–180 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	100 ml	PET	43 mm	48 × 159.3 mm	83.2 / 103.3 mm	27 g	57.6 g	Enquire
Foam Bottle 02	150 ml	PET	43 mm	48 × 180.6 mm	104.5 / 124.6 mm	27 g		Enquire
Foam Bottle 03	180 ml	PET	43 mm	48 × 205.2 mm	129.1 / 149.2 mm	27 g	57.6 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

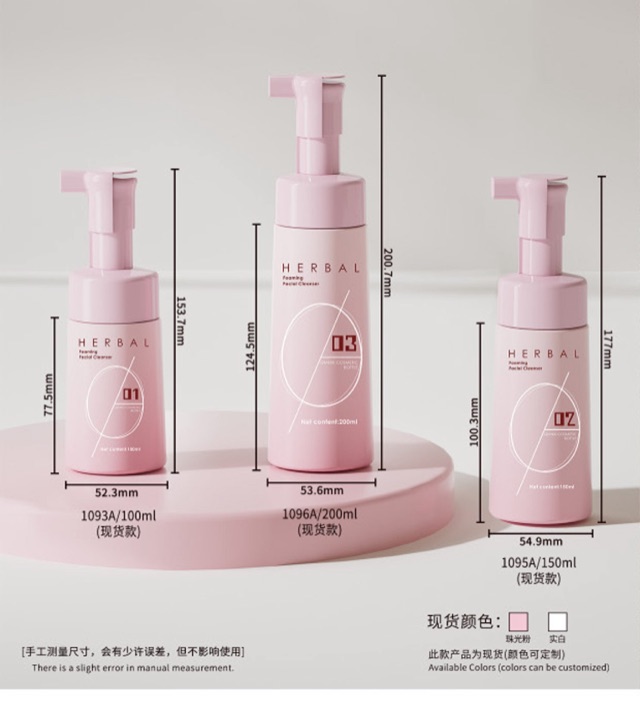

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 43 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 43PET Foam Bottles

3 formats · 100–200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 04	100 ml	PET	43 mm	52.3 × 153.7 mm	77.5 / 97.2 mm	27 g	57.4 g	Enquire
Foam Bottle 05	150 ml	PET	43 mm	50.7 × 177 mm	100.3 / 120.2 mm	35 g	64.5 g	Enquire
Foam Bottle 06	200 ml	PET	43 mm	50.7 × 200.7 mm	124.5 / 144.2 mm	35 g	64.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 44 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 44PET Foam Bottles

3 formats · 100–200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 07	100 ml	PET	43 mm	52.3 × 150.2 mm		27 g	56.7 g	Enquire
Foam Bottle 08	150 ml	PET	43 mm	53.6 × 173.7 mm	100.3 / 120.2 mm	35 g	65 g	Enquire
Foam Bottle 09	200 ml	PET	43 mm	54.9 × 197.2 mm	124.5 / 144.2 mm	35 g		Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 45 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 45PET Foam Bottles

3 formats · 100–200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 10	100 ml	PET	43 mm	47.5 × 151.7 mm	81.35 / 107.65 mm	27 g	60 g	Enquire
Foam Bottle 11	150 ml	PET	43 mm	47.5 × 180 mm	115.65 / 136.2 mm	27 g	50 g	Enquire
Foam Bottle 12	200 ml	PET	43 mm	47.5 × 207.9 mm	143.6 / 163.8 mm	27 g	60 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Pump Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 46 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 46PET Pump Bottles

5 formats · 100–500 ml

PET Pump Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Pump Bottle 01	100 ml	PET	32 mm	47.7 × 105.4 mm	70.7 / 83 mm	16 g	36 g	Enquire
Pump Bottle 02	150 ml	PET	32 mm	52.1 × 119.9 mm	85 / 37.4 mm	22 g	42 g	Enquire
Pump Bottle 03	200 ml	PET	32 mm	56.1 × 131.3 mm	96.5 / 109.5 mm	25 g	45.3 g	Enquire
Pump Bottle 04	300 ml	PET	32 mm	62.8 × 147.4 mm	112 / 124.5 mm	35 g	55.5 g	Enquire
Pump Bottle 05	500 ml	PET	32 mm	73.3 × 169 mm	133.5 / 146.5 mm	51 g	71.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

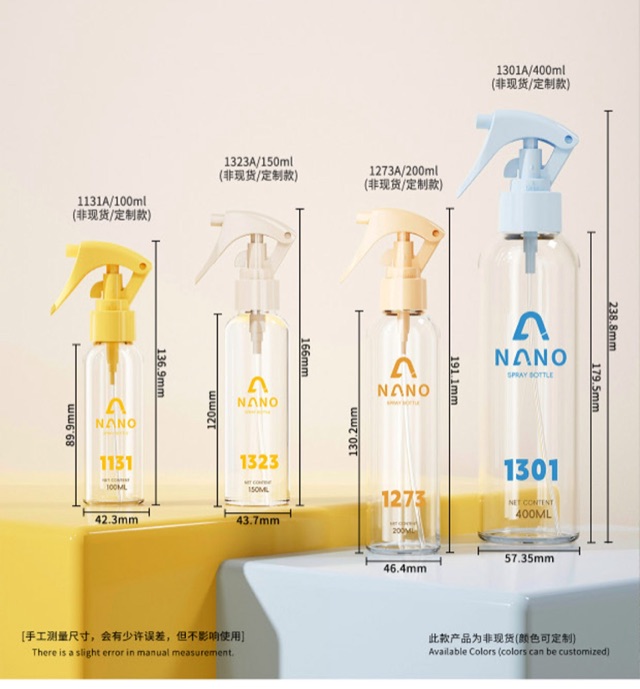

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 47 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 47PET Spray Bottles

4 formats · 100–400 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	100 ml	PET	24 mm		89.9 / 106.3 mm	25 g	39.3 g	Enquire
Spray Bottle 02	150 ml	PET	24 mm	43.7 × 166 mm	120 / 136.7 mm	18 g	25.5 g	Enquire
Spray Bottle 03	200 ml	PET	24 mm	46.4 × 191.1 mm	130.2 / 147 mm	24 g	37 g	Enquire
Spray Bottle 04	400 ml	PET	24 mm	57.35 × 238.8 mm	179.8 / 195.8 mm	30 g	52.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 48 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 48PET Spray Bottles

3 formats · 100–200 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 07	100 ml	PET	24 mm	39.3 × 161.1 mm	104 / 119.4 mm	18 g	315 g	Enquire
Spray Bottle 08	150 ml	PET	24 mm	43.2 × 180.5 mm	123.1 / 138.4 mm		37.5 g	Enquire
Spray Bottle 09	200 ml	PET	24 mm	46.2 × 198.9 mm	140.3 / 155.9 mm	24 g	37.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

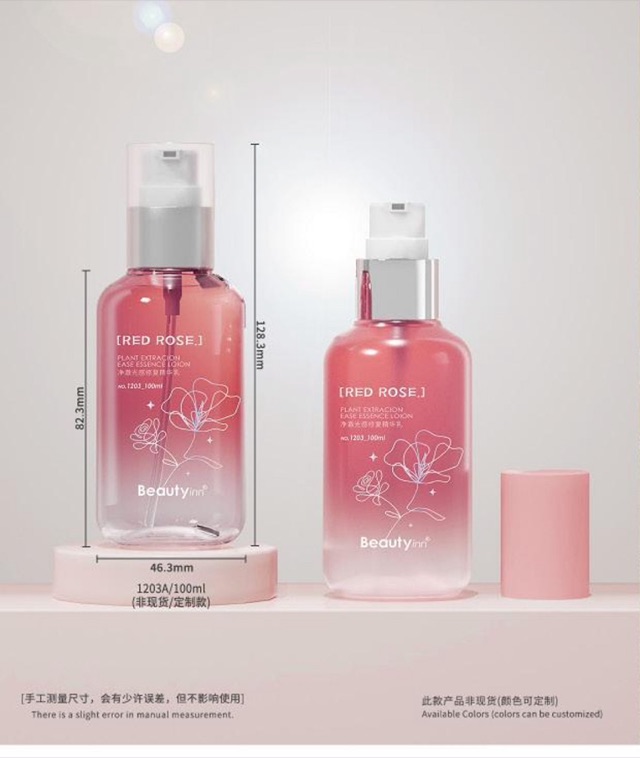

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 49 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 49PET Lotion Bottles

1 format · 100 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Lotion Bottle 01	100 ml	PET	24 mm	46.3 × 128.3 mm	82.3 / 99.4 mm	37 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 50 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 50PET Lotion Bottles

1 format · 100 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 02	100 ml	PET	24 mm	52.6 × 34.92 × 145.4 mm	100.5 / 117.9 mm	30 g	41.7 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Pump Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 51 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 51PET Pump Bottles

1 format · 100 ml

PET Pump Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Pump Bottle 01	100 ml	PET	24 mm	55.3 × 31.4 × 136.2 mm	85 / 100.8 mm	25 g	35 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 52 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 52PET Lotion Bottles

1 format · 100 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 03	100 ml	PET	20 mm	39.5 × 147.2 mm	104.8 / 121.6 mm	23 g	39 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Where These Come From

The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.

Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.

Send Us the Format You Have in Mind

Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.
