Bottles & Jars
Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.
| Product groups | 169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more |
| Formats | 514 across 169 plates |
| Capacity | 5 – 800 ml · 3 – 330 g (cream jars, measured by weight) |
| Neck | Printed per format; 12 – 85 mm across the range we can read |
| Materials | ABS, HDPE, LDPE, PE, PET, PETG, PP |
| Table columns | They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes |
| Decoration | Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes |
| Order quantity | Confirmed per project — it depends on the format, the tooling and the decoration |
| Sampling | Available. Formats already in tooling sample fastest; a custom prototype follows design approval |
The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.
The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.
What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Enquiry |
|---|---|---|---|---|---|---|---|
| Cream Jar 01 | 50 g | PET | 56 mm | 59.3 × 49 mm | 28.4 / 38.8 mm | 45 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Cream Jar 02 | 50 g | PET | 56 mm | 59.45 × 44.4 mm | 29 / 41 mm | 49 g | 60 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Cream Jar 01 | 50 ml | PP | 51 mm | 54 × 54 × 47.31 mm | 33.8 / 45.9 mm | 12 g | 20 g | Enquire |
| Cream Jar 02 | 50 ml | PP | 51 mm | 54 × 54 mm | 33.8 / 45.5 mm | 11 g | 19.2 g | Enquire |
| Cream Jar 03 | 300 ml | PP | 85 mm | 89 × 89 × 78.8 mm | 63.2 / 76.3 mm | Enquire | ||
| Cream Jar 04 | 300 ml | PP | 85 mm | 89 × 89 × 77.8 mm | 63.2 / 76.3 mm | Enquire | ||
| Cream Jar 05 | 250 ml | PP | 85 mm | 89 × 89 × 66.6 mm | 50.5 / 63.6 mm | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|
| Cream Jar 01 | 180 ml | PP jar body / PP lid | 76 mm | 80.8 × 80.8 × 74.4 mm | 51 g | 65.7 g | Enquire |
| Cream Jar 02 | 180 ml | PP jar body / PP lid | 76 mm | 51 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Wide-mouth Bottle 01 | 300 ml | PET | 68 mm | 81.7 × 73.3 × 83.1 mm | 64.4 / 80.3 mm | 30 g | 39 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Overall size | Height to shoulder / mouth | Enquiry |
|---|---|---|---|---|

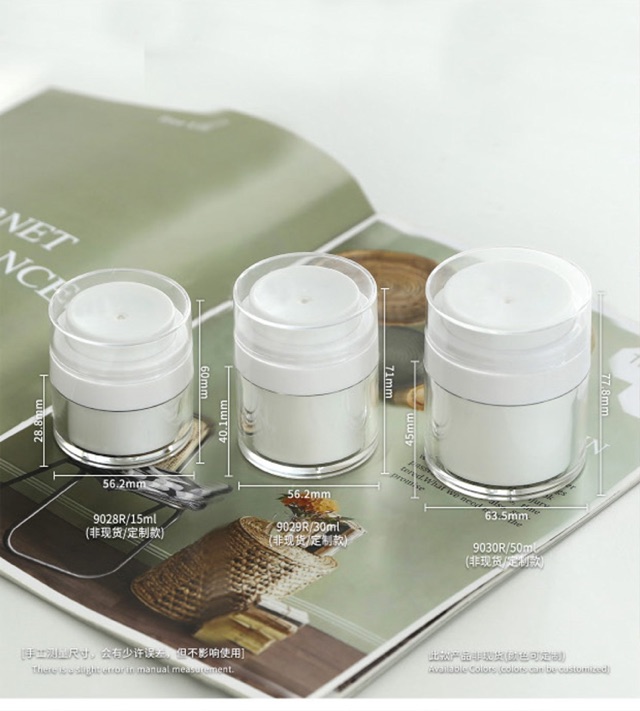

| Airless Jar 01 | 15 ml | 56.2 × 60 mm | 28.8 / 37.4 mm | Enquire |
| Airless Jar 02 | 30 ml | 56.2 × 71 mm | 40.1 / 48.7 mm | Enquire |
| Airless Jar 03 | 50 ml | 63.5 × 77.8 mm | 45 / 55 mm | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Overall size | Height to shoulder / mouth | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|
| Airless Bottle 01 | 15 ml | ABS | 40 × 72.2 mm | 38.9 / 45.2 mm | 37 g | Enquire |
| Airless Bottle 02 | 30 ml | ABS | 40 × 92.3 mm | 58.9 / 65.2 mm | 45.5 g | Enquire |
| Airless Bottle 03 | 50 ml | ABS | 40 × 118.4 mm | 84.9 / 91.2 mm | 58 g | Enquire |
| Airless Bottle 04 | 15 ml | ABS | 40 × 72.2 mm | 38.9 / 45.2 mm | 37 g | Enquire |
| Airless Bottle 05 | 30 ml | ABS | 40 × 92.3 mm | 58.9 / 65.2 mm | 45.5 g | Enquire |
| Airless Bottle 06 | 50 ml | ABS | 40 × 118.4 mm | 84.9 / 91.2 mm | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Neck | Overall size | Bottle weight | Enquiry |
|---|---|---|---|---|---|
| Lotion Bottle 01 | 15 ml | 20 mm | 33 × 100 mm | Enquire | |
| Lotion Bottle 02 | 30 ml | 20 mm | 33 × 119 mm | Enquire | |
| Lotion Bottle 03 | 50 ml | 20 mm | 33 × 153 mm | 53 g | Enquire |
| Lotion Bottle 04 | 8 ml | 20 mm | 40.5 × 153.9 mm | 64 g | Enquire |
| Lotion Bottle 05 | 100 ml | 20 mm | 40.5 × 174.7 mm | Enquire | |
| Lotion Bottle 06 | 120 ml | 20 mm | 40.5 × 194.9 mm | 77 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Overall size | Weight, filled | Enquiry |
|---|---|---|---|---|---|
| Airless Bottle 01 | 15 ml | PP | 35.2 × 77.2 mm | 22.8 g | Enquire |
| Airless Bottle 02 | 30 ml | PP | 35.2 × 99.2 mm | 25.4 g | Enquire |
| Airless Bottle 03 | 50 ml | PP | 35.2 × 124.6 mm | 29 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Material | Neck | Overall size | Weight, filled | Enquiry |
|---|---|---|---|---|---|
| Spray Bottle 01 | PP | 13 mm | 23.08 × 95.7 mm | 35.6 g | Enquire |
| Spray Bottle 02 | PP | 23.08 × 95.7 mm | 37.9 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Assorted · 30 ml | ||||||||
| Foam Bottle 01 | 30 ml | 30 mm | 36 × 102 mm | 49.9 / 60.3 mm | 11 g | 25.5 g | Enquire | |
| PETG · 50 ml | ||||||||
| Toner Bottle 01 | 50 ml | PETG | 22 mm | 30.7 × 99.3 mm | 79.8 / 94.4 mm | 8 g ±0.5 | 12.5 g | Enquire |
| Spray Bottle 03 | 50 ml | PETG | 24 mm | 31.5 × 119.3 mm | 74 / 92.4 mm | 10.5 g ±0.5 | 20.8 g | Enquire |
| PET · 50 ml | ||||||||
| Lotion Bottle 03 | 50 ml | PET | 24 mm | 31.5 × 119.3 mm | 74 / 92.4 mm | 10.5 g ±0.5 | Enquire | |
| Lotion Bottle 04 | 50 ml | PET | 24 mm | 31.5 × 115.5 mm | 74 / 92.4 mm | 10.5 g ±0.5 | 21.8 g | Enquire |
| PP · 5–10 g | ||||||||
| Cream Jar 01 | 5 g | PP | 34 × 27.5 mm | 15.9 / 26 mm | 7.2 g | Enquire | ||
| Cream Jar 02 | 10 g | PP | 39.3 × 33 mm | 21 / 30.5 mm | 10.7 g | Enquire | ||
| PE · 50 ml | ||||||||
| Tube 01 | 50 ml | PE | 17 mm | 27.7 × 131.3 mm | 115.6 / 126.8 mm | 8 g ±0.5 | 10 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Overall size | Enquiry |
|---|---|---|---|---|
| Squeeze Bottle 02 | 60 ml | PE | 175 × 150 mm | Enquire |
| Travel Set 01 | 60 ml | PE | 175 × 150 mm | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Overall size | Weight, filled | Enquiry |
|---|---|---|---|---|
| Assorted · 100 ml | ||||
| Travel Set 01 | 100 ml | 200 × 150 mm | 117.8 g | Enquire |
| Assorted · 150 ml | ||||
| Travel Set 01 | 150 ml | 200 × 150 mm | 130.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.
Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.
Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.
