Bottles & Jars
Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.
| Product groups | 169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more |
| Formats | 514 across 169 plates |
| Capacity | 5 – 800 ml · 3 – 330 g (cream jars, measured by weight) |
| Neck | Printed per format; 12 – 85 mm across the range we can read |
| Materials | ABS, HDPE, LDPE, PE, PET, PETG, PP |
| Table columns | They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes |
| Decoration | Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes |
| Order quantity | Confirmed per project — it depends on the format, the tooling and the decoration |
| Sampling | Available. Formats already in tooling sample fastest; a custom prototype follows design approval |
The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.
The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.
What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 01 | 300 ml | PET | 24 mm | 68.5 × 136.3 mm | 30 g | 47 g | Enquire | |
| Lotion Bottle 02 | 300 ml | PET | 24 mm | 68 × 123 mm | 98.8 / 117.6 mm | 25 g | 30 g | Enquire |
| Flip-top Bottle 01 | 300 ml | PET | 24 mm | 68 × 131.4 mm | 98.8 / 117.6 mm | 25 g | 30 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Foam Bottle 01 | 300 ml | PET | 43 mm | 72 × 155.65 mm | 90.9 / 114 mm | 35 g | 68.3 g | Enquire |
| Foam Bottle 02 | 500 ml | PET | 43 mm | 79.5 × 182.8 mm | 117.8 / 140.9 mm | 45 g | 79.1 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|

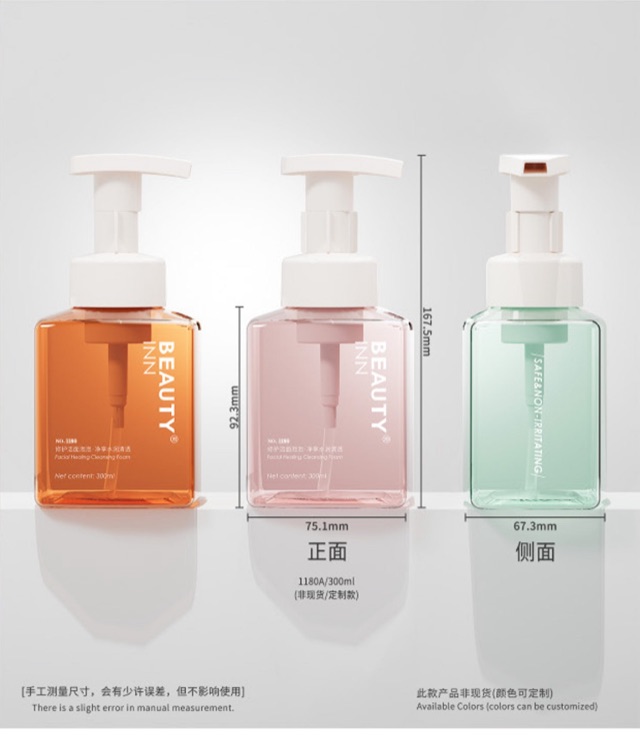

| Foam Bottle 01 | 300 ml | PET | 43 mm | 67.3 × 75.1 × 167.5 mm | 92.3 / 113.8 mm | 45 g | 76.4 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Foam Bottle 01 | 300 ml | PET | 43 mm | 71.8 × 166.7 mm | 92.7 / 112.8 mm | 35 g | 64.4 g | Enquire |
| Foam Bottle 02 | 400 ml | PET | 43 mm | 71.8 × 192.5 mm | 118.8 / 138.9 mm | 45 g | 74.8 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 01 | 300 ml | PET | 24 mm | 63.7 × 161.62 mm | 120.57 / 136.7 mm | 30 g | 44 g | Enquire |
| Lotion Bottle 02 | 500 ml | PET | 75.4 × 190.3 mm | 149.8 / 166 mm | 61 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|
| Lotion Bottle 01 | 300 ml | 24 mm | 124.6 / 139.6 mm | 30 g | Enquire | ||
| Lotion Bottle 02 | 380 ml | 24 mm | 56.3 × 177.6 mm | 135.2 / 153 mm | 52.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|

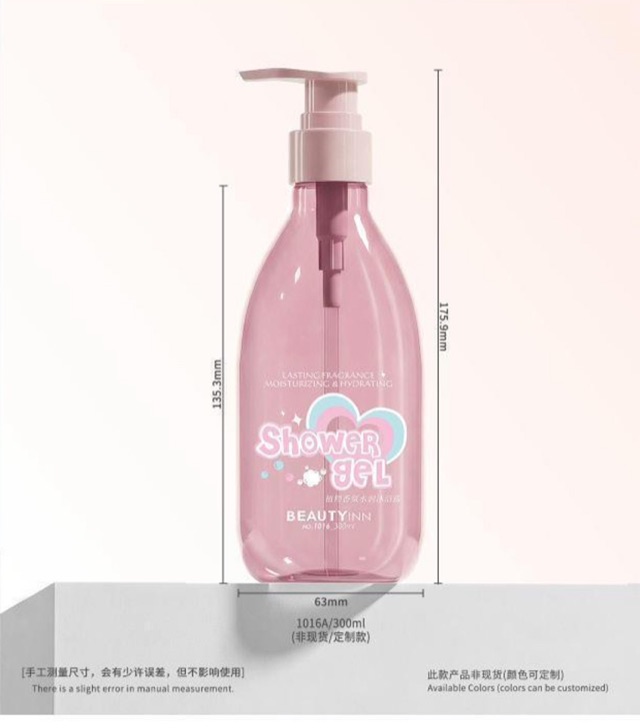

| Lotion Bottle 03 | 300 ml | PET | 24 mm | 63 × 175.9 mm | 135.3 / 150.8 mm | 35 g | 48.6 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Neck | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|
| Lotion Bottle 01 | 300 ml | 28 mm | 94.9 / 117.2 mm | 29 g | 43 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 03 | 300 ml | PET | 32 mm | 66.4 × 142 mm | 107.2 / 122.2 mm | 35 g | 69 g | Enquire |
| Lotion Bottle 04 | 500 ml | PET | 32 mm | 74.2 × 171.5 mm | 136.1 / 151.5 mm | 47 g | 81 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| PET · 200 ml | ||||||||
| Lotion Bottle 02 | 200 ml | PET | 24 mm | 53 × 152.7 mm | 108 / 126.2 mm | 27 g | 40.4 g | Enquire |
| PET · 300–800 ml | ||||||||
| Lotion Bottle 01 | 300 ml | PET | 24 mm | 56.2 × 190.8 mm | 147.7 / 165.4 mm | 40 g | 56.4 g | Enquire |
| Lotion Bottle 02 | 400 ml | PET | 28 mm | 59.75 × 212 mm | 169.4 / 187.2 mm | 50 g | 76.3 g | Enquire |
| Lotion Bottle 03 | 500 ml | PET | 32 mm | 68.1 × 208.3 mm | 161.9 / 180.5 mm | 55 g | 80.6 g | Enquire |
| Lotion Bottle 04 | 800 ml | PET | 32 mm | 77.5 × 241.3 mm | 194.5 / 213.5 mm | 65 g | 91.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|

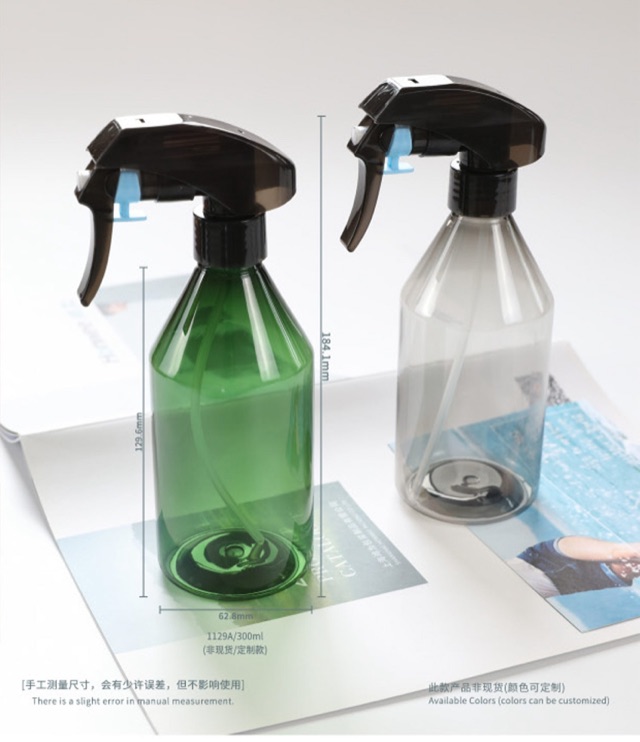

| Spray Bottle 01 | 300 ml | PET | 24 mm | 62.8 × 184.1 mm | 129.6 / 145.6 mm | 30 g | 52.8 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Spray Bottle 01 | 300 ml | PET | 29 mm | 64.35 × 186.2 mm | 125 / 142 mm | 33 g | 55.5 g | Enquire |
| Spray Bottle 02 | 500 ml | PET | 28 mm | 67.9 × 236.2 mm | 174.7 / 190.8 mm | 71.5 g | Enquire | |
| Spray Bottle 03 | 300 ml | PET | 28 mm | 63.6 × 57.7 × 199.9 mm | 138.7 / 155.3 mm | 56.5 g | Enquire | |
| Spray Bottle 04 | 500 ml | PET | 28 mm | 176.9 / 194 mm | 48 g | 71.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Jar 01 | 330 g | PET | 28 mm | 55.4 × 203 mm | 153 / 199.8 mm | 42 g | 48.6 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.
Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.
Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.
