Bottles & Jars

Cosmetic Bottles and Jars, with Their Published Dimensions

Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Product groups	169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more
Formats	514 across 169 plates
Capacity	5 – 800 ml · 3 – 330 g (cream jars, measured by weight)
Neck	Printed per format; 12 – 85 mm across the range we can read
Materials	ABS, HDPE, LDPE, PE, PET, PETG, PP
Table columns	They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes
Decoration	Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes
Order quantity	Confirmed per project — it depends on the format, the tooling and the decoration
Sampling	Available. Formats already in tooling sample fastest; a custom prototype follows design approval

Applications beyond the cosmetic category

The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.

The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.

What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 27 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 27PET Spray Bottles

6 formats · 30–150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	50 ml	PET	20 mm	33.3 × 123.5 mm	81.4 / 95.15 mm	20 g	39.3 g	Enquire
Spray Bottle 02	60 ml	PET	20 mm	33.3 × 126.2 mm	93.7 / 107.35 mm	20 g	39.3 g	Enquire
Spray Bottle 03	30 ml	PET	20 mm	33.2 × 158.7 mm	116.3 / 130.6 mm	20 g	39.3 g	Enquire
Spray Bottle 04	100 ml	PET	20 mm	39.4 × 151 mm	104.8 / 122.8 mm		56 g	Enquire
Spray Bottle 05	120 ml	PET	20 mm	39.4 × 167.6 mm	120.9 / 139.2 mm	30 g	56 g	Enquire
Spray Bottle 06	150 ml	PET		39.4 × 193.2 mm		30 g	56 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 28 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 28PET Lotion Bottles

10 formats · 50–150 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
PET · 50–150 ml
Pump Bottle 01	80 ml	PET	24 mm	42.3 × 126.2 mm	73.5 / 38.4 mm		48.5 g	Enquire
Pump Bottle 02	50 ml	PET	24 mm	42.3 × 132.9 mm	80.3 / 95.3 mm		48.5 g	Enquire
Pump Bottle 03	100 ml	PET	24 mm	42.3 × 140.1 mm	87.6 / 102.6 mm		49.5 g	Enquire
Pump Bottle 04	120 ml	PET	24 mm	42.3 × 154 mm	101.3 / 116.4 mm		49.5 g	Enquire
Pump Bottle 05	150 ml	PET	24 mm	42.1 × 179.2 mm	126.6 / 141.8 mm	30 g	53.5 g	Enquire
Assorted · 50–150 ml
Lotion Bottle 01	80 ml		24 mm	42.3 × 126.2 mm	73.5 / 88.4 mm	25 g		Enquire
Lotion Bottle 02	50 ml		24 mm		80.3 / 95.3 mm		49 g	Enquire
Lotion Bottle 03	100 ml		24 mm	42.3 × 140.1 mm	87.6 / 102.6 mm	25 g		Enquire
Lotion Bottle 04	120 ml		24 mm	42.3 × 154 mm	101.3 / 116.4 mm	25 g		Enquire
Lotion Bottle 05	150 ml		24 mm	42.1 × 179.2 mm	126.6 / 141.8 mm	30 g	54 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 29 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 29PET Spray Bottles

6 formats · 30–120 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
PET · 30–120 ml
Spray Bottle 17	30 ml	PET	24 mm	68.95 / 85 mm	22 g	45 g	Enquire
Spray Bottle 18	100 ml	PET	24 mm	81 / 97.2 mm	25 g	48 g	Enquire
Spray Bottle 19	120 ml	PET	24 mm	92 / 108 mm	30 g	53 g	Enquire
Assorted · 80–120 ml
Lotion Bottle 01	80 ml		24 mm	68.95 / 85 mm	22 g	45 g	Enquire
Lotion Bottle 02	100 ml		24 mm	81 / 97.2 mm	25 g	48 g	Enquire
Lotion Bottle 03	120 ml		24 mm	92 / 108 mm	30 g	53 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

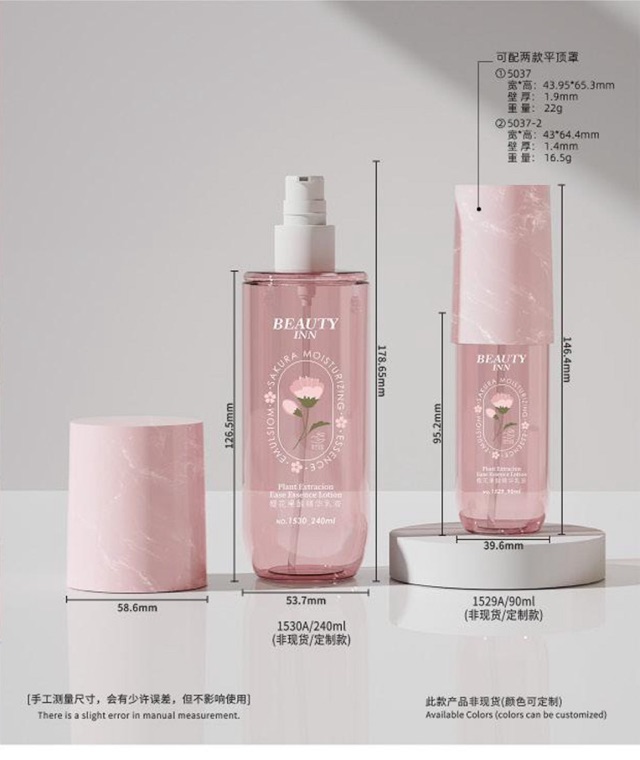

PET Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 30 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 30PET Bottles

2 formats · 90–240 ml

PET Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Bottle 01	90 ml (brimful 106 ±2 ml)	PET	24 mm		95.2 / 113.3 mm	18 g		Enquire
Bottle 02	240 ml (brimful 261 ±2 ml)	PET	24 mm	53.7 × 178.65 mm	126.5 / 144.6 mm	30 g	70.7 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 31 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 31PET Spray Bottles

3 formats · 100–150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	100 ml	PET	24 mm	40 × 146.4 mm	100.4 / 116.4 mm	21 g	38.6 g	Enquire
Spray Bottle 02	120 ml	PET	24 mm	40 × 164 mm	118 / 134 mm	24 g	41.5 g	Enquire
Spray Bottle 03	150 ml	PET	24 mm	40 × 191.9 mm	145.9 / 161.9 mm	30 g	47.7 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 32 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 32PET Spray Bottles

2 formats · 100 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	100 ml	PET	24 mm	40 × 144.6 mm	94.6 / 112.2 mm	16 g	24.8 g	Enquire
Spray Bottle 02	100 ml	PET	24 mm		97.7 / 113.8 mm		24.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 33 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 33PET Spray Bottles

6 formats · 100–150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 04	100 ml (brimful 111 ±2 ml)	PET	24 mm	44 × 138.6 mm			55 g	Enquire
Spray Bottle 05	120 ml (brimful 131 ±2 ml)	PET	24 mm	44 × 153.7 mm	97.2 / 115.4 mm	30 g		Enquire
Spray Bottle 06	150 ml (brimful 160 ±2 ml)	PET	24 mm	44 × 176.6 mm	119.5 / 137.7 mm	35 g	65 g	Enquire
Lotion Bottle 01	100 ml (brimful 111 ±2 ml)	PET	24 mm	44 × 138.6 mm			55 g	Enquire
Lotion Bottle 02	120 ml (brimful 131 ±2 ml)	PET	24 mm	44 × 153.7 mm	97.2 / 115.4 mm	30 g		Enquire
Lotion Bottle 03	150 ml (brimful 160 ±2 ml)	PET	24 mm	44 × 176.6 mm	119.5 / 137.7 mm		65 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 34 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 34PET Spray Bottles

6 formats · 100–120 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	100 ml (brimful 111 ±2 ml)	PET	24 mm	44 × 139.6 mm	81.7 / 100.5 mm		54.8 g	Enquire
Spray Bottle 02	120 ml (brimful 132 ±2 ml)	PET	24 mm	44 × 154.9 mm	98.1 / 116.5 mm	30 g	58.5 g	Enquire
Spray Bottle 03		PET	24 mm	44 × 177.1 mm	120.1 / 138.5 mm	35 g	64.3 g	Enquire
Lotion Bottle 01	100 ml (brimful 111 ±2 ml)	PET	24 mm	44 × 139.6 mm	81.7 / 100.5 mm	25 g	54.8 g	Enquire
Lotion Bottle 02	120 ml (brimful 132 ±2 ml)	PET	24 mm	44 × 154.9 mm	98.1 / 116.5 mm	30 g	58.5 g	Enquire
Lotion Bottle 03		PET	24 mm	44 × 177.1 mm	120.1 / 138.5 mm	35 g	54.3 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 35 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 35PET Spray Bottles

6 formats · 100–150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 07	100 ml (brimful 111 ±2 ml)	PET	24 mm	44 × 138.6 mm	81.7 / 99.8 mm	25 g		Enquire
Spray Bottle 08	120 ml (brimful 131 ±2 ml)	PET	24 mm	44 × 153.8 mm	97.2 / 115.4 mm	30 g	65 g	Enquire
Spray Bottle 09	150 ml (brimful 160 ±2 ml)	PET	24 mm	44 × 176.5 mm	119.5 / 137.7 mm		70 g	Enquire
Lotion Bottle 04	100 ml (brimful 111 ±2 ml)	PET	24 mm	44 × 138.6 mm		25 g		Enquire
Lotion Bottle 05	120 ml (brimful 131 ±2 ml)	PET	24 mm	44 × 153.8 mm	97.2 / 115.4 mm	30 g		Enquire
Lotion Bottle 06	150 ml (brimful 160 ±2 ml)	PET	24 mm	44 × 176.5 mm	119.5 / 137.7 mm	35 g	70 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 36 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 36PET Spray Bottles

3 formats · 100–150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Bottle weight	Enquiry
Spray Bottle 10	100 ml (brimful 111 ±2 ml)	PET	24 mm	44 × 129.6 mm	25 g	Enquire
Spray Bottle 11	120 ml (brimful 131 ±2 ml)	PET	24 mm	44 × 145 mm	30 g	Enquire
Spray Bottle 12	150 ml (brimful 160 ±2 ml)	PET	24 mm	44 × 167.5 mm	35 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 37 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 37PET Lotion Bottles

6 formats · 100–150 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Bottle 01	100 ml	PET		45.4 × 128.48 mm	70.2 / 95.1 mm	25 g	44 g	Enquire
Bottle 02	120 ml	PET	24 mm	46.4 × 140.5 mm	82.2 / 107.2 mm			Enquire
Bottle 03	150 ml	PET	24 mm	46.4 × 160.5 mm	102.2 / 126.9 mm	30 g	49 g	Enquire
Lotion Bottle 07	100 ml	PET	24 mm	45.4 × 128.48 mm	70.2 / 95.1 mm		45 g	Enquire
Lotion Bottle 08	120 ml	PET	24 mm	46.4 × 140.5 mm	82.2 / 107.2 mm	25 g	45 g	Enquire
Lotion Bottle 09	150 ml	PET	24 mm		102.2 / 126.9 mm	30 g		Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 38 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 38PET Spray Bottles

6 formats · 100–200 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	100 ml (brimful 111 ±2 ml)	PET	24 mm	41.1 × 141.7 mm	89.8 / 111.4 mm	25 g	46 g	Enquire
Spray Bottle 02	120 ml (brimful 130 ±2 ml)	PET	24 mm	41.1 × 158 mm	106 / 127.7 mm	27 g	48 g	Enquire
Spray Bottle 03	150 ml (brimful 160 ±2 ml)	PET	24 mm		130.7 / 152.4 mm	30 g	51 g	Enquire
Spray Bottle 04	180 ml (brimful 190 ±2 ml)	PET	24 mm	47.4 × 167.5 mm	116.1 / 138 mm	30 g	53.5 g	Enquire
Spray Bottle 05	200 ml (brimful 212 ±2 ml)	PET	24 mm	47.4 × 180 mm	128.4 / 150.2 mm		56.5 g	Enquire
Spray Bottle 06	150 ml	PET	24 mm	38.6 × 197.3 mm	142 / 165.3 mm	18 g		Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 39 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 39PET Spray Bottles

1 format · 100 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 03	100 ml	PET	20 mm	41.1 × 127.4 mm	87.8 / 104.2 mm	19 g	45 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Where These Come From

The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.

Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.

Send Us the Format You Have in Mind

Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.

Request a Quote Request a Sample
