Bottles & Jars

Cosmetic Bottles and Jars, with Their Published Dimensions

Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Product groups	169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more
Formats	514 across 169 plates
Capacity	5 – 800 ml · 3 – 330 g (cream jars, measured by weight)
Neck	Printed per format; 12 – 85 mm across the range we can read
Materials	ABS, HDPE, LDPE, PE, PET, PETG, PP
Table columns	They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes
Decoration	Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes
Order quantity	Confirmed per project — it depends on the format, the tooling and the decoration
Sampling	Available. Formats already in tooling sample fastest; a custom prototype follows design approval

Applications beyond the cosmetic category

The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.

The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.

What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.

PET Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 14 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 14PET Bottles

5 formats · 30–150 ml

PET Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Bottle 01	30 ml	PET	20 mm	33.6 × 94 mm	51.4 / 55.12 mm	5 g	22.2 g	Enquire
Bottle 02	50 ml	PET	20 mm	33.6 × 111.15 mm		16.5 g	30 g	Enquire
Bottle 03	100 ml	PET	24 mm		79.2 / 102.85 mm	25 g	45.8 g	Enquire
Bottle 04	120 ml	PET	24 mm	40.6 × 147.99 mm	92.7 / 116.6 mm	30 g	50.8 g	Enquire
Bottle 05	150 ml	PET	24 mm	40.6 × 169.5 mm		35 g	55.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 15 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 15PET Spray Bottles

4 formats · 30–50 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 06	30 ml	PET	20 mm	29.3 × 101.96 mm	59.3 / 72.8 mm	9 g	25.4 g	Enquire
Spray Bottle 07	50 ml	PET	20 mm	20.3 × 136.7 mm	94 / 108 mm	13 g	29.4 g	Enquire
Spray Bottle 08	30 ml	PET	20 mm	29.3 × 101.96 mm	59.3 / 72.8 mm	9 g	25.4 g	Enquire
Spray Bottle 09	50 ml	PET	20 mm	29.3 × 136.7 mm	94 / 108 mm	13 g	294 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 16 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 16PET Spray Bottles

4 formats · 30–100 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 09	30 ml	PET	24 mm	32.1 × 95.3 mm	48.6 / 51.8 mm	8 g		Enquire
Spray Bottle 10	50 ml	PET	24 mm	32.1 × 124.3 mm	77.6 / 30.3 mm	12 g	21 g	Enquire
Spray Bottle 11	80 ml	PET	24 mm	37.5 × 133.6 mm			25 g	Enquire
Spray Bottle 12	100 ml	PET	24 mm	37.5 × 145.8 mm	98 / 112.6 mm	15 g		Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 17 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 17PET Foam Bottles

9 formats · 30–250 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	30 ml	PET	30 mm	35.5 × 103.3 mm	56.4 / 65.6 mm	12 g	30 g	Enquire
Foam Bottle 02	50 ml	PET	30 mm	35.5 × 114.2 mm	67.8 / 78 mm	12 g	30 g	Enquire
Foam Bottle 03	80 ml	PET	30 mm	35.5 × 128.8 mm	82.4 / 92.6 mm	12 g	30 g	Enquire
Foam Bottle 04	100 ml	PET	43 mm	48 × 143.2 mm	83.4 / 103.8 mm		56.2 g	Enquire
Foam Bottle 05	120 ml	PET	43 mm	48 × 150.9 mm	90.7 / 110.7 mm		56.2 g	Enquire
Foam Bottle 06	150 ml	PET	43 mm	48 × 164.7 mm	104.6 / 125 mm		56.2 g	Enquire
Foam Bottle 07	180 ml	PET	43 mm	48 × 189.4 mm	129.3 / 149.7 mm		55.2 g	Enquire
Foam Bottle 08	200 ml	PET	43 mm	47.9 × 197.88 mm	137.65 / 158 mm	27 g		Enquire
Foam Bottle 09	250 ml	PET	43 mm	54.7 × 184.6 mm	124.7 / 145.1 mm	27 g		Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 18 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 18PET Foam Bottles

8 formats · 30–200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	30 ml	PET	30 mm	35.5 × 107.6 mm	56.4 / 66.6 mm	12 g	27.3 g	Enquire
Foam Bottle 02	50 ml	PET	30 mm	35.5 × 119 mm	67.8 / 78 mm	12 g	27.3 g	Enquire
Foam Bottle 03	60 ml	PET	30 mm	35.5 × 133.6 mm	82.4 / 92.6 mm	12 g	27.3 g	Enquire
Foam Bottle 04	100 ml	PET	43 mm	48 × 152 mm	83.4 / 103.8 mm	27 g	60.6 g	Enquire
Foam Bottle 05	120 ml	PET	43 mm	48 × 159.4 mm	90.7 / 110.7 mm		60.6 g	Enquire
Foam Bottle 06	150 ml	PET	43 mm	48 × 173.2 mm	104.6 / 125 mm	27 g	60.6 g	Enquire
Foam Bottle 07	180 ml	PET	43 mm	48 × 197.9 mm	129.3 / 149.7 mm	27 g	60.6 g	Enquire
Foam Bottle 08	200 ml	PET	43 mm	47.9 × 206.5 mm	137.65 / 158 mm	27 g	60.6 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Dropper Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 19 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 19PET Dropper Bottles

3 formats · 30 ml

PET Dropper Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Dropper Bottle 01	30 ml	PET	18 mm	46.2 × 22.3 × 94.5 mm	55 / 71.2 mm		13.8 g	Enquire
Dropper Bottle 02	30 ml	PET	18 mm	41.2 × 22.2 × 94.5 mm	56 / 71.2 mm		13.8 g	Enquire
Dropper Bottle 03	30 ml	PET	18 mm	42.7 × 22.3 × 98 mm	59.5 / 74.5 mm	8 g	13.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

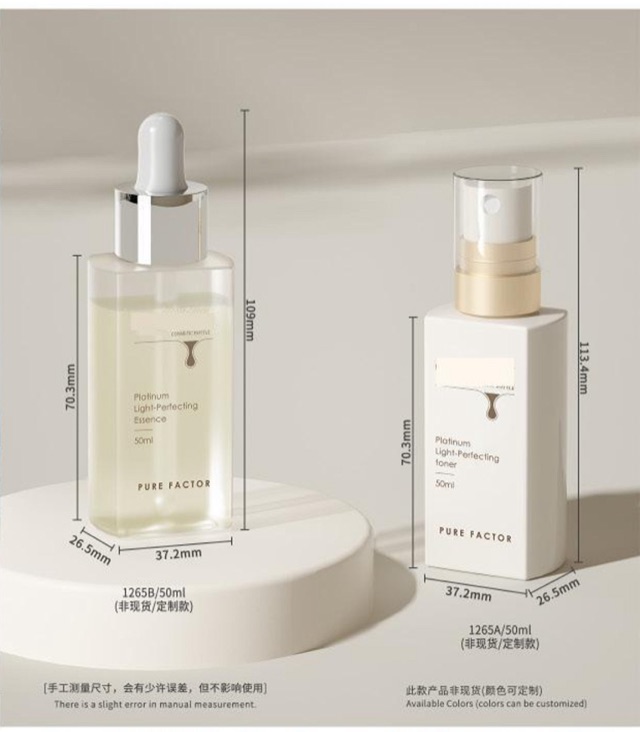

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 20 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 20PET Spray Bottles

2 formats · 50 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Dropper Bottle 01	50 ml	PET	20 mm	37.2 × 26.5 × 109 mm	70.3 / 86 mm	12 g	20 g	Enquire
Spray Bottle 01	50 ml	PET	20 mm	37.2 × 26.5 × 113.4 mm	70.3 / 86 mm	12 g	20.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 21 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 21PET Bottles

1 format · 50 ml

PET Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Bottle 01	50 ml	PET	20 mm	27.85 × 131.3 mm	84.7 / 99.5 mm	19 g	33 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 22 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 22PET Lotion Bottles

1 format · 50 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Lotion Bottle 01	50 ml	PET	20 mm	40 × 103.2 mm	61.05 / 103.5 mm	25 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 23 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 23PET Spray Bottles

6 formats · 50–150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	50 ml	PET	24 mm	40 × 104 mm	57.6 / 73.9 mm	12 g	30.5 g	Enquire
Spray Bottle 02		PET	24 mm	40 × 111.95 mm	65.4 / 82 mm	12 g	30.5 g	Enquire
Spray Bottle 03	80 ml	PET	24 mm	40 × 131.1 mm	84.5 / 101 mm	18 g	37 g	Enquire
Spray Bottle 04	100 ml	PET	24 mm	40 × 149.1 mm	102.5 / 119 mm	21 g	39.5 g	Enquire
Spray Bottle 05	120 ml	PET	24 mm	40 × 167.49 mm	120.84 / 137.36 mm	25 g	43.8 g	Enquire
Spray Bottle 06	150 ml	PET	24 mm	40 × 194.54 mm	148 / 164.52 mm	30 g	48.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 24 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 24PET Spray Bottles

4 formats · 50–150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 07	50 ml	PET	24 mm	40 × 99.2 mm		12 g	30.6 g	Enquire
Spray Bottle 08	100 ml	PET	24 mm	40 × 145.3 mm	98.7 / 115.8 mm	21 g	38.6 g	Enquire
Spray Bottle 09	120 ml	PET	24 mm	40 × 162.93 mm	116.35 / 133.4 mm		41.5 g	Enquire
Spray Bottle 10	150 ml	PET	24 mm	40 × 190.75 mm	144 / 161 mm	30 g	47.7 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 25 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 25PET Spray Bottles

2 formats · 50 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Spray Bottle 02	50 ml	PET	20 mm	31.8 × 125.4 mm	76.65 / 91.2 mm	27 g	Enquire
Lotion Bottle 02	50 ml	PET	20 mm	31.8 × 125.4 mm	76.65 / 91.2 mm	27 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 26 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 26PET Foam Bottles

1 format · 50 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Foam Bottle 01	50 ml	PET	30 mm	35.6 × 119.2 mm	67.8 / 78.4 mm	27 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Where These Come From

The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.
