Bottles & Jars
Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.
| Product groups | 169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more |
| Formats | 514 across 169 plates |
| Capacity | 5 – 800 ml · 3 – 330 g (cream jars, measured by weight) |
| Neck | Printed per format; 12 – 85 mm across the range we can read |
| Materials | ABS, HDPE, LDPE, PE, PET, PETG, PP |
| Table columns | They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes |
| Decoration | Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes |
| Order quantity | Confirmed per project — it depends on the format, the tooling and the decoration |
| Sampling | Available. Formats already in tooling sample fastest; a custom prototype follows design approval |
The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.
The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.
What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|

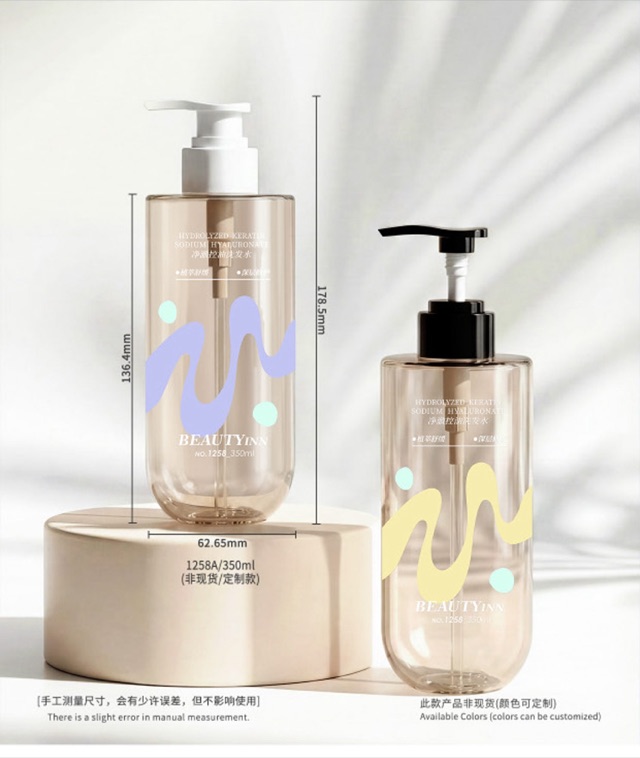

| Lotion Bottle 01 | 350 ml | PET | 28 mm | 62.65 × 178.5 mm | 136.4 / 153.8 mm | 41 g | 54.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|
| Lotion Bottle 02 | 350 ml | PET | 24 mm | 68.75 × 159.7 mm | 115.55 / 135.2 mm | 53.8 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Enquiry |
|---|---|---|---|---|---|---|

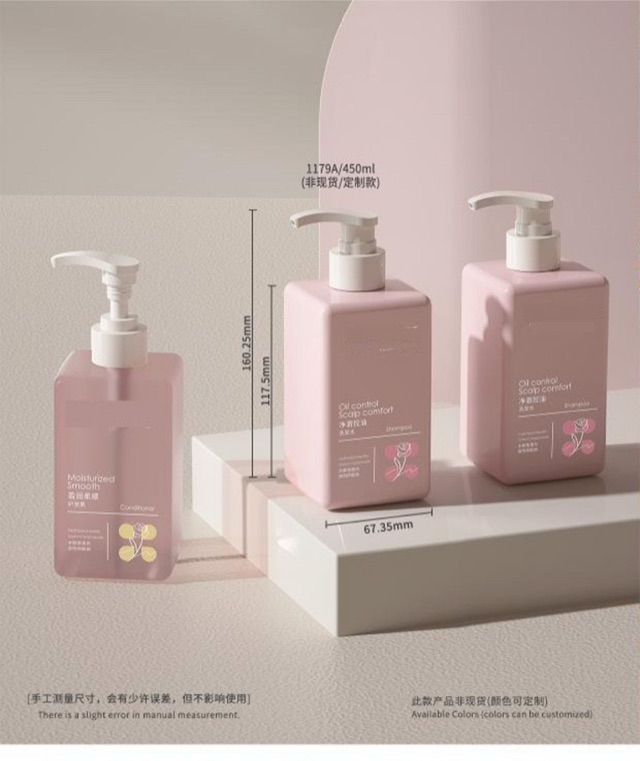

| Lotion Bottle 01 | PET | 28 mm | 67.35 × 160.25 mm | 117.5 / 135.3 mm | 51 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 01 | 450 ml | PET | 28 mm | 80.5 × 51 × 190.16 mm | 147.56 / 170.5 mm | 42 g | 54.8 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| PET · 500–600 ml | ||||||||
| Lotion Bottle 01 | 500 ml | PET | 32 mm | 72.2 × 183.8 mm | 146.7 / 162.6 mm | 55 g | 83 g | Enquire |
| Lotion Bottle 02 | 600 ml | PET | 32 mm | 76.2 × 193.1 mm | 155.5 / 172.1 mm | 83 g | Enquire | |
| PET · 480–780 ml | ||||||||
| Lotion Bottle 01 | 480 ml | PET | 32 mm | 76 × 68.45 × 183.3 mm | 145 / 162.3 mm | 55 g | 83 g | Enquire |
| Lotion Bottle 02 | 780 ml | PET | 32 mm | 202.3 / 218.6 mm | 65 g | 92.7 g | Enquire | |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|

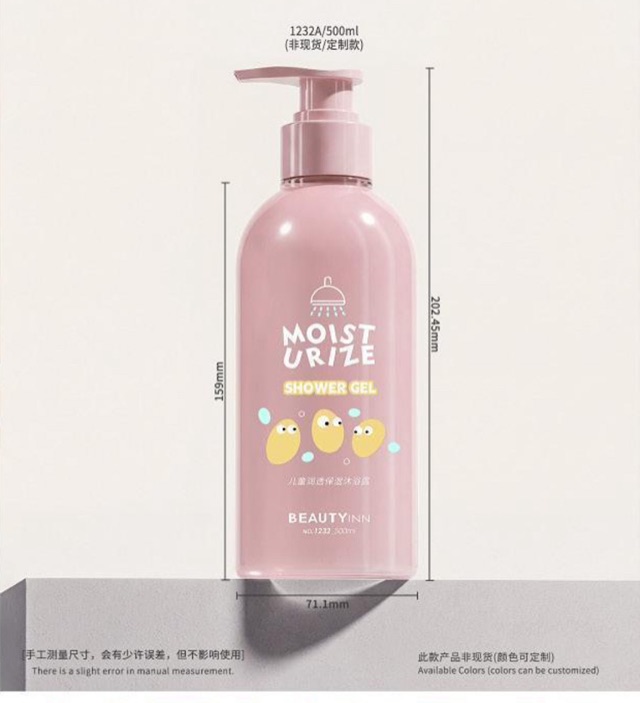

| Lotion Bottle 01 | 500 ml | PET | 32 mm | 71.1 × 202.45 mm | 159 / 175 mm | 55 g | 81.8 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 02 | 500 ml | PET | 32 mm | 131.4 / 151.5 mm | 53 g | 85 g | Enquire | |
| Foam Bottle 01 | 500 ml | PET | 43 mm | 68 × 74.8 × 212.1 mm | 131.2 / 157.8 mm | 68 g | 99.3 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Enquiry |
|---|---|---|---|---|---|---|---|

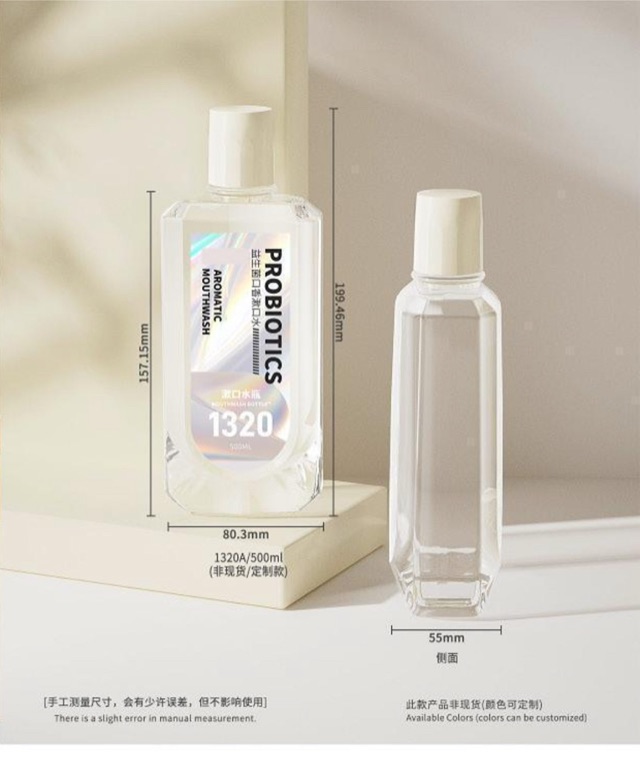

| Mouthwash Bottle 01 | 500 ml | PET | 28 mm | 80.3 × 55 × 199.46 mm | 157.15 / 196 mm | 46 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Spray Bottle 01 | 10 ml | PETG | 15 mm | 16.7 × 102.1 mm | 69.9 / 80.6 mm | 4-4.5 g | 7.8 g | Enquire |
| Spray Bottle 02 | 15 ml | PETG | 13 mm | 19 × 110 mm | 72.8 / 84 mm | 6-6.5 g | 14.5 g | Enquire |
| Lotion Bottle 01 | 10 ml | PETG | 15 mm | 69.9 / 80.6 mm | 4-4.5 g | 7.8 g | Enquire | |
| Lotion Bottle 02 | 15 ml | PETG | 13 mm | 19 × 110 mm | 72.8 / 84 mm | 6-6.5 g | 14.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|

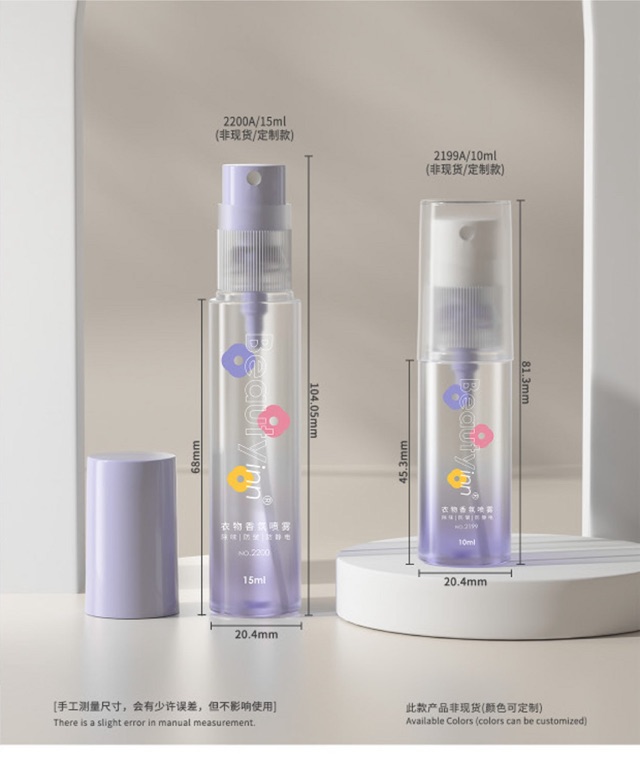

| Spray Bottle 03 | 10 ml | PETG | 13 mm | 45.3 / 56.9 mm | 95 g | Enquire | |
| Spray Bottle 04 | 15 ml | PETG | 13 mm | 68 / 79.8 mm | 6 g ±0.5 | 11.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|

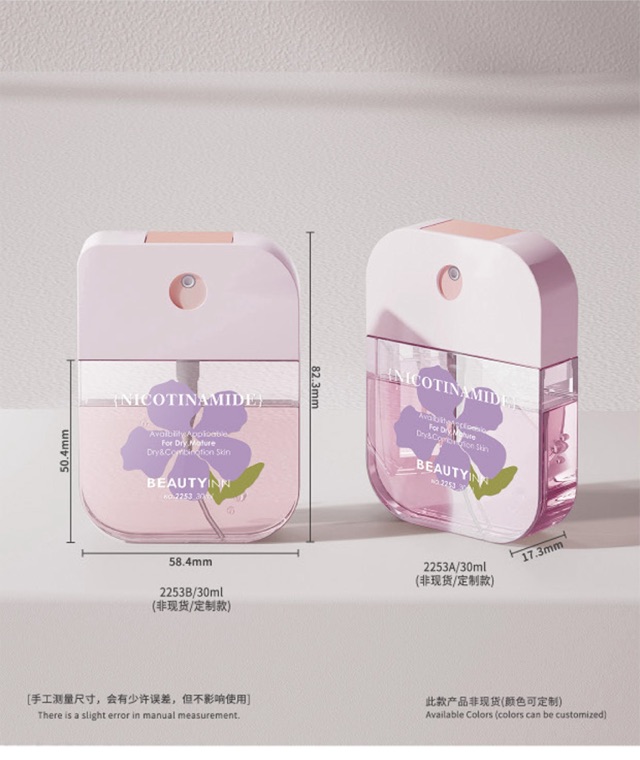

| Spray Bottle 01 | 30 ml | PETG | 12 mm | 58.4 × 17.3 × 82.3 mm | 50.4 / 56.4 mm | 12 g ±1 | 24 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Spray Bottle 02 | 30 ml | PETG | 13 mm | 17.65 × 51.85 × 91.6 mm | 57 / 65.6 mm | 12 g ±1 | 27.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|
| Spray Bottle 01 | 30 ml (brimful 36 ml) | PETG | 54.15 × 25.3 × 83 mm | 47.2 / 52.6 mm | 8 g ±1 | 20.5 g | Enquire |
| Spray Bottle 02 | 30 ml (brimful 36 ml) | PETG | 47.2 / 52.6 mm | 8 g ±1 | Enquire | ||
| Spray Bottle 03 | 35 ml | PETG | 44.8 / 50.4 mm | 10 g ±1 | 22.5 g | Enquire | |
| Spray Bottle 04 | 35 ml | PETG | 54.1 × 27.7 × 91 mm | 44.8 / 50.4 mm | 10 g ±1 | 22.9 g | Enquire |
| Spray Bottle 05 | 30 ml | PETG | 54 × 25.15 × 80.35 mm | 43.86 / 50.1 mm | 8 g ±0.5 | 21 g | Enquire |
| Spray Bottle 06 | 30 ml | PETG | 54 × 25.15 × 80.35 mm | 43.86 / 50.1 mm | 8 g ±0.5 | 21.4 g | Enquire |
| Spray Bottle 07 | 50 ml | PETG | 54 × 25.2 × 102.25 mm | 65.6 / 71.7 mm | 13 g ±1 | 25.5 g | Enquire |
| Spray Bottle 08 | 50 ml | PETG | 54 × 25.2 × 102.25 mm | 65.6 / 71.7 mm | 13 g ±1 | 25.9 g | Enquire |
| Spray Bottle 09 | 50 ml | PETG | 54 × 27.9 × 95.4 mm | 58.7 / 64.85 mm | 13 g ±1 | 25.5 g | Enquire |
| Spray Bottle 10 | 50 ml | PETG | 54 × 27.9 × 95.4 mm | 58.7 / 54.85 mm | 13 g ±1 | 25.9 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.
Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.
Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.
