Bottles & Jars

Cosmetic Bottles and Jars, with Their Published Dimensions

Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Product groups	169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more
Formats	514 across 169 plates
Capacity	5 – 800 ml · 3 – 330 g (cream jars, measured by weight)
Neck	Printed per format; 12 – 85 mm across the range we can read
Materials	ABS, HDPE, LDPE, PE, PET, PETG, PP
Table columns	They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes
Decoration	Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes
Order quantity	Confirmed per project — it depends on the format, the tooling and the decoration
Sampling	Available. Formats already in tooling sample fastest; a custom prototype follows design approval

Applications beyond the cosmetic category

The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.

The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.

What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.

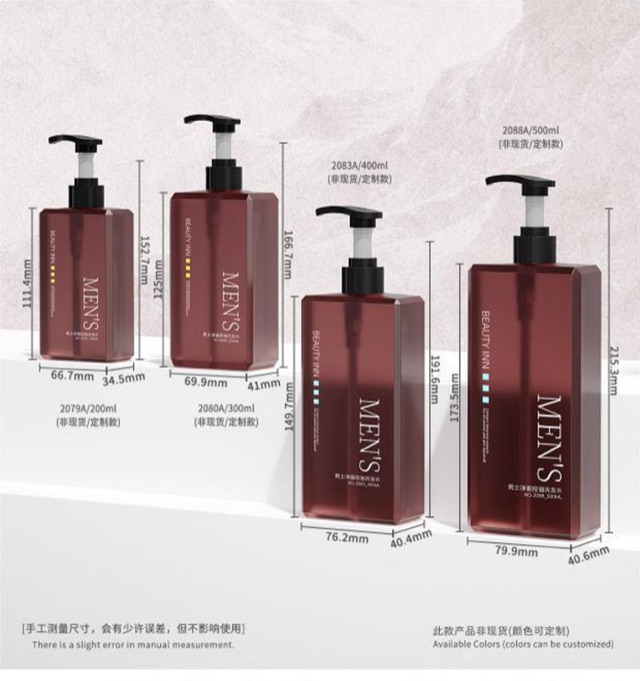

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 105 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 105PETG Lotion Bottles

4 formats · 200–500 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 01	200 ml	PETG	24 mm		111.4 / 128.2 mm	40 g ±2		Enquire
Lotion Bottle 02	300 ml	PETG	24 mm		125 / 142.6 mm	45 g ±2	58 g	Enquire
Lotion Bottle 03	400 ml	PETG	28 mm	76.2 × 40.4 × 191.6 mm	149.7 / 167.8 mm	58 g ±2	71 g	Enquire
Lotion Bottle 04	500 ml	PETG	28 mm	79.9 × 40.6 × 215.3 mm	173.5 / 190.9 mm	72 g ±2	85 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 106 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 106PETG Lotion Bottles

3 formats · 200–400 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 01	200 ml	PETG	24 mm	68.8 × 45.3 × 122.9 mm	82.7 / 98.8 mm	40 g ±2	52.5 g	Enquire
Lotion Bottle 02	300 ml	PETG	24 mm	68.8 × 44.8 × 158.4 mm	118.2 / 135 mm	50 g ±2	52.5 g	Enquire
Lotion Bottle 03	400 ml	PETG	24 mm	68.8 × 44.8 × 192.5 mm	153 / 169.6 mm	60 g ±2	72.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 107 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 107PETG Lotion Bottles

2 formats · 200–300 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 01	200 ml	PETG	28 mm		33 g ±2	49 g	Enquire
Lotion Bottle 02	300 ml	PETG		76.4 × 107 mm	45 g ±2	59.2 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 108 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 108PETG Lotion Bottles

2 formats · 200–300 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 03	200 ml	PETG	28 mm	64.5 / 80.5 mm	33 g ±2	48.3 g	Enquire
Lotion Bottle 04	300 ml	PETG	28 mm	72.3 / 88.8 mm	45 g ±2	59 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 109 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 109PETG Lotion Bottles

5 formats · 200–400 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 04	200 ml	PETG	24 mm	73 × 33.6 × 154.7 mm	112.5 / 130.1 mm	35 g ±2		Enquire
Lotion Bottle 05		PETG	24 mm	86.4 × 40.5 × 152.8 mm	110.9 / 128 mm	45 g ±2	58 g	Enquire
Lotion Bottle 06		PETG	24 mm	82.1 × 38 × 168.8 mm	126.8 / 144.5 mm	45 g ±2	58 g	Enquire
Lotion Bottle 07	350 ml	PETG	24 mm	86.5 × 40.3 × 175 mm	133.6 / 151 mm	60 g ±2	73 g	Enquire
Lotion Bottle 08	400 ml	PETG	24 mm		153.2 / 169.7 mm	65 g ±2	78 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

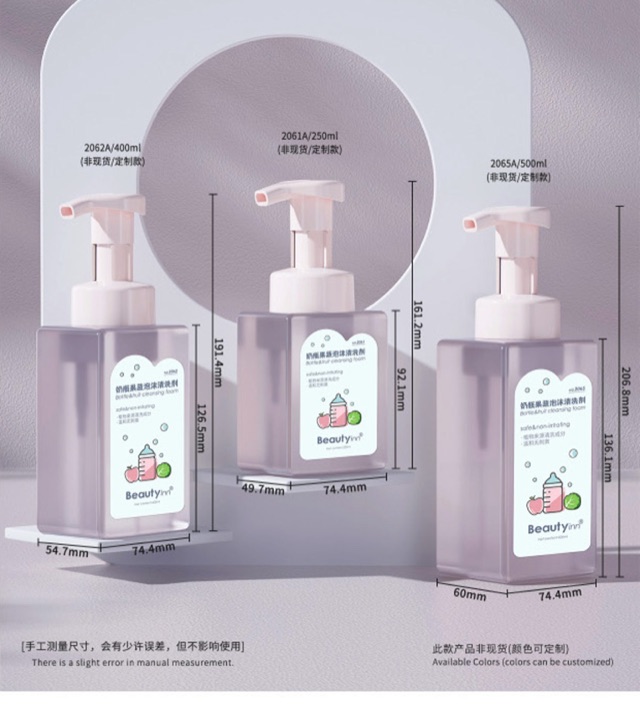

PETG Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 110 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 110PETG Foam Bottles

3 formats · 250–500 ml

PETG Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	250 ml	PETG	43 mm		92.1 / 109 mm	44 g ±2	71 g	Enquire
Foam Bottle 02	400 ml	PETG	43 mm	74.4 × 54.7 × 191.4 mm	126.5 / 137.6 mm	56 g ±2	83 g	Enquire
Foam Bottle 03	500 ml	PETG	43 mm		136.1 / 153.6 mm	56 g ±2	93 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 111 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 111PETG Foam Bottles

3 formats · 250–650 ml

PETG Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	250 ml	PETG	43 mm	67.1 × 144.1 mm	69.4 / 92 mm	38 g ±2	68.5 g	Enquire
Foam Bottle 02	450 ml	PETG	43 mm	67.1 × 193 mm	118.2 / 140.1 mm	58 g ±2		Enquire
Foam Bottle 03	650 ml	PETG	43 mm	68.1 × 228.6 mm	154.4 / 176.5 mm	75 g ±2	105.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

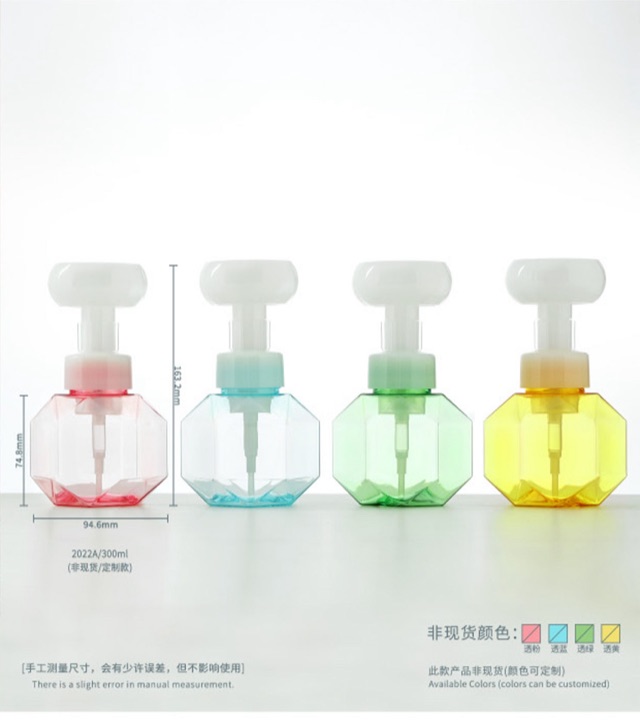

Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 112 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 112Foam Bottles

1 format · 300 ml

Foam Bottles: published dimensions
Format	Capacity	Neck	Bottle weight	Enquiry
Foam Bottle 01	300 ml	43 mm	45 g ±2	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

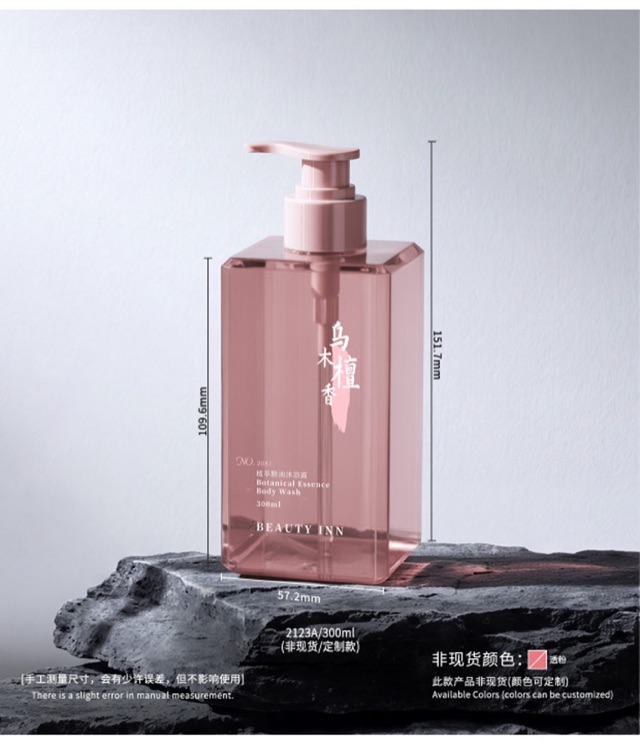

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 113 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 113PETG Lotion Bottles

1 format · 300 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 01	300 ml	PETG	24 mm	57.2 × 151.7 mm	109.6 / 127 mm	42 g ±2	55 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 114 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 114PETG Lotion Bottles

1 format · 300 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 02	300 ml	PETG	100 / 117.2 mm	45 g ±2	60 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Squeeze Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 115 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 115Squeeze Bottles

2 formats · 30–50 ml

Squeeze Bottles: published dimensions
Format	Capacity	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Squeeze Bottle 01	30 ml (brimful 38 ±2 ml)	24 mm	33 × 72.5 mm	51.5 / 55.4 mm	5 g ±0.5	112 g	Enquire
Squeeze Bottle 02	50 ml (brimful 57 ±2 ml)			78 / 92.6 mm	9 g ±0.5	13.9 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Squeeze Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 116 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 116Squeeze Bottles

1 format · 30 ml

Squeeze Bottles: published dimensions
Format	Capacity	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Squeeze Bottle 01	30 ml	14 mm	39.1 × 24.65 × 82.83 mm	58 / 76.2 mm	8 g ±0.5	12.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

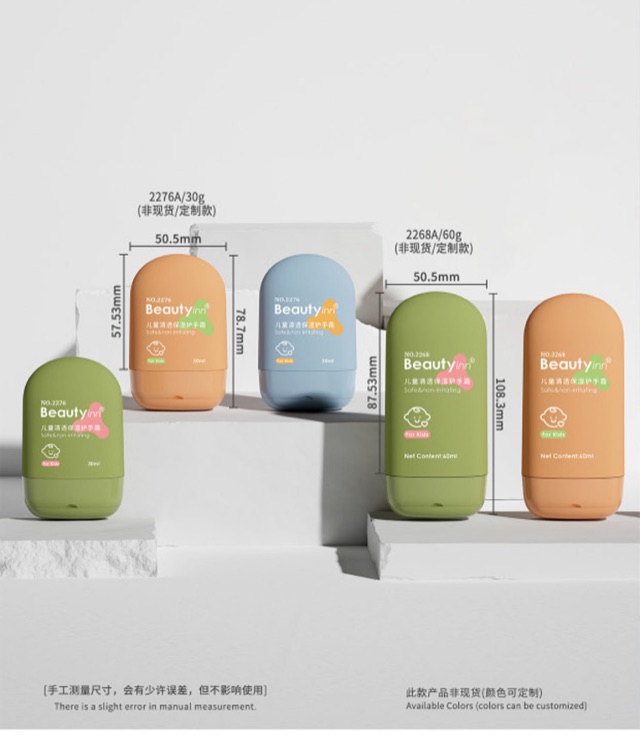

HDPE Squeeze Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 117 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 117HDPE Squeeze Bottles

2 formats · 30–60 ml

HDPE Squeeze Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Squeeze Bottle 01	30 ml	HDPE / LDPE	19 mm	50.5 × 27 × 78.7 mm	57.53 / 71 mm		13.5 g	Enquire
Squeeze Bottle 02	60 ml	HDPE / LDPE	19 mm	50.5 × 27.4 × 108.3 mm	87.53 / 101 mm	12 g ±1	17.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Where These Come From

The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.
