Bottles & Jars
Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.
| Product groups | 169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more |
| Formats | 514 across 169 plates |
| Capacity | 5 – 800 ml · 3 – 330 g (cream jars, measured by weight) |
| Neck | Printed per format; 12 – 85 mm across the range we can read |
| Materials | ABS, HDPE, LDPE, PE, PET, PETG, PP |
| Table columns | They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes |
| Decoration | Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes |
| Order quantity | Confirmed per project — it depends on the format, the tooling and the decoration |
| Sampling | Available. Formats already in tooling sample fastest; a custom prototype follows design approval |
The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.
The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.
What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Enquiry |
|---|---|---|---|---|---|---|

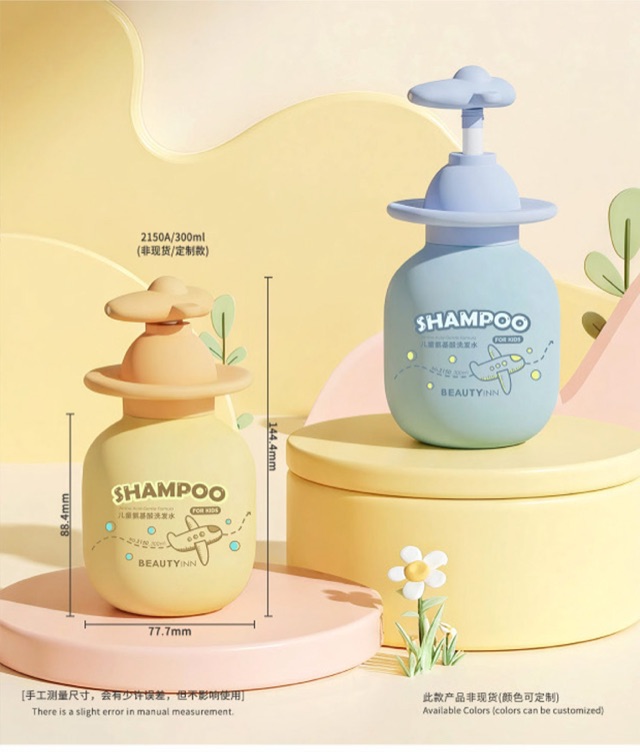

| Lotion Bottle 01 | 300 ml | HDPE | 28 mm | 77.7 × 144.4 mm | 88.4 / 116.5 mm | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 02 | 300 ml | HDPE | 24 mm | 63.7 × 162.4 mm | 116 / 136 mm | 25 g ±1 | 37.5 g | Enquire |
| Lotion Bottle 03 | 300 ml (brimful 342 ±3 ml) | HDPE | 28 mm | 64.6 × 151.6 mm | 118.15 / 134.3 mm | 30 g ±1 | 54 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 04 | 300 ml | HDPE | 28 mm | 76.5 × 50.45 × 184.3 mm | 147.5 / 161.2 mm | 30 g ±1 | 47.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Enquiry |
|---|---|---|---|---|---|---|---|

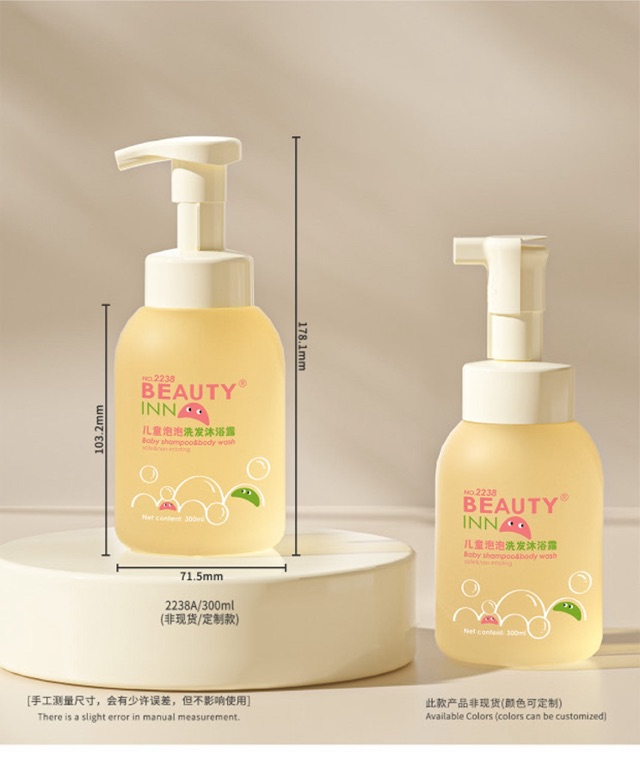

| Foam Bottle 01 | 300 ml | HDPE | 43 mm | 71.5 × 178.1 mm | 103.2 / 125.1 mm | 32 g ±2 | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|

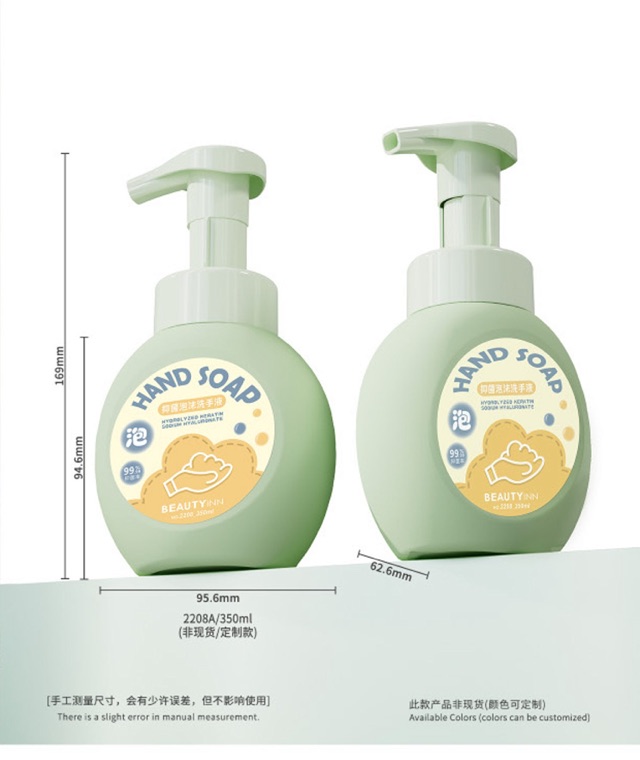

| Foam Bottle 01 | 350 ml | HDPE | 43 mm | 94.6 / 116.2 mm | 35 g ±2 | 65 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Lotion Bottle 01 | 350 ml | HDPE | 24 mm | 83.5 × 46.35 × 158.15 mm | 118 / 133.7 mm | 32 g ±2 | 45 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Enquiry |
|---|---|---|---|---|---|---|---|

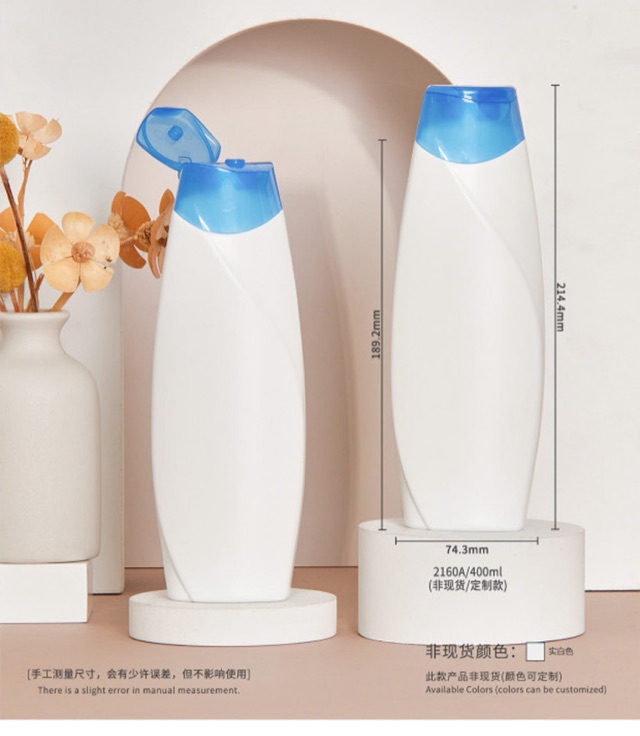

| Toner Bottle 01 | 400 ml (brimful 444 ±3 ml) | HDPE | 27 mm | 74.3 × 45.6 × 214.4 mm | 189.2 / 207.8 mm | 34 g ±1 | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Brush Bottle 01 | 10 ml | PETG | 13 mm | 25 × 80.4 mm | 51.2 / 62.1 mm | 15 g | 20 g | Enquire |
| Brush Bottle 02 | 15 ml | PETG | 13 mm | 27.6 × 79.8 mm | 16 g | 20 g | Enquire | |
| Brush Bottle 03 | 15 ml | PETG | 13 mm | 30.2 × 75.4 mm | 45.9 / 56.3 mm | 16 g | 20 g | Enquire |
| Brush Bottle 04 | 15 ml | PETG | 13 mm | 28.9 × 79.4 mm | 50.3 / 60.7 mm | 15 g | 20 g | Enquire |
| Brush Bottle 05 | 15 ml | PETG | 13 mm | 25.5 × 79.5 mm | 50.4 / 61.1 mm | 16 g | 20 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Dropper Bottle 01 | 10 ml | PETG | 13 mm | 25 × 80 mm | 51.2 / 62.1 mm | 16 g | 20 g | Enquire |
| Dropper Bottle 02 | 15 ml | PETG | 13 mm | 27.5 × 79.4 mm | 50.6 / 61.3 mm | 10 g | 20 g | Enquire |
| Dropper Bottle 03 | 15 ml | PETG | 30.2 × 75 mm | 45.9 / 56.3 mm | 16 g | 20 g | Enquire | |
| Dropper Bottle 04 | 15 ml | PETG | 13 mm | 25.5 × 79.1 mm | 50.4 / 61.1 mm | 20 g | Enquire | |
| Dropper Bottle 05 | 15 ml | PETG | 13 mm | 28.9 × 78.8 mm | 50.3 / 60.7 mm | 16 g | 20 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|

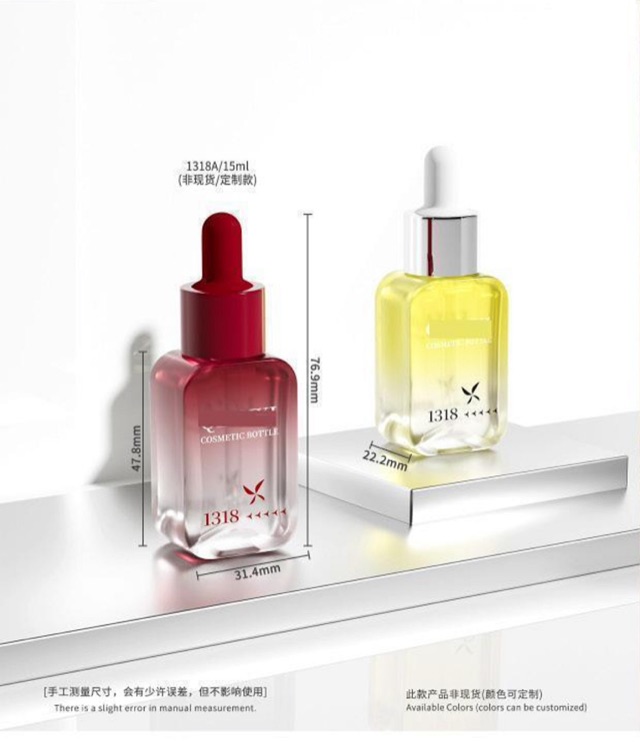

| Dropper Bottle 01 | 15 ml | PETG | 13 mm | 31.4 × 22.2 × 76.9 mm | 47.8 / 58.7 mm | 16 g | 20 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Dropper Bottle 01 | 15 ml | PETG | 13 mm | 25.5 × 79.1 mm | 50.4 / 61.1 mm | 16 g | 20 g | Enquire |
| Dropper Bottle 02 | 30 ml | PETG | 20 mm | 32.9 × 101 mm | 62.4 / 76.2 mm | 23 g | 37.8 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Dropper Bottle 01 | 20 ml | PETG | 24 mm | 33.3 × 74.9 mm | 38.6 / 54.5 mm | 15 g | 32 g | Enquire |
| Dropper Bottle 02 | 30 ml | PETG | 24 mm | 33.3 × 94.4 mm | 57.9 / 74.5 mm | 25 g | 42.7 g | Enquire |
| Dropper Bottle 03 | 20 ml | PETG | 24 mm | 33.3 × 90.65 mm | 38.6 / 54.5 mm | 15 g | 31 g | Enquire |
| Dropper Bottle 04 | 30 ml | PETG | 24 mm | 33.3 × 109.7 mm | 57.9 / 74.5 mm | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| PETG · 20–30 ml | ||||||||
| Dropper Bottle 05 | 20 ml | PETG | 20 mm | 30.5 × 102.1 mm | 52.8 / 76.6 mm | 36.3 g | Enquire | |
| Dropper Bottle 06 | 30 ml | PETG | 20 mm | 33.5 × 105.4 mm | 65.4 / 79.8 mm | 36.3 g | Enquire | |
| PETG · 30 ml | ||||||||
| Dropper Bottle 01 | 30 ml | PETG | 20 mm | 33.1 × 105 mm | 63.2 / 79.6 mm | 29 g | 35.3 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.
Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.
Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.
