Bottles & Jars
Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.
| Product groups | 169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more |
| Formats | 514 across 169 plates |
| Capacity | 5 – 800 ml · 3 – 330 g (cream jars, measured by weight) |
| Neck | Printed per format; 12 – 85 mm across the range we can read |
| Materials | ABS, HDPE, LDPE, PE, PET, PETG, PP |
| Table columns | They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes |
| Decoration | Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes |
| Order quantity | Confirmed per project — it depends on the format, the tooling and the decoration |
| Sampling | Available. Formats already in tooling sample fastest; a custom prototype follows design approval |
The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.
The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.
What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Tube 01 | 30 ml | LDPE | 17 mm | 26 × 98.5 mm | 82.3 / 93.3 mm | 6 g ±0.5 | 8 g | Enquire |
| Tube 02 | 50 ml | LDPE | 17 mm | 27.7 × 131.3 mm | 115.6 / 126.8 mm | 10 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Dropper Bottle 01 | 50 ml | PP | 20 mm | 43.4 × 98.25 mm | 56.84 / 67.7 mm | 13 g ±1 | 20.9 g | Enquire |
| Dropper Bottle 02 | 50 ml | PP | 20 mm | 43.4 × 94.5 mm | 56.84 / 67.7 mm | 13 g ±1 | 19.3 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

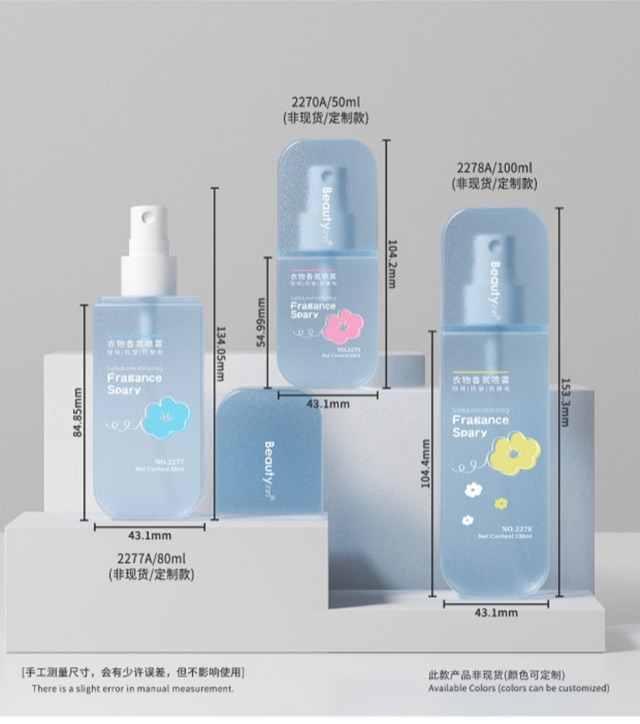

| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Bottle 01 | 50 ml | PP | 20 mm | 43.1 × 29.3 × 104.2 mm | 54.99 / 72.8 mm | 10 g ±1 | 23 g | Enquire |
| Bottle 02 | 80 ml | PP | 20 mm | 43.1 × 29.3 × 134.05 mm | 84.85 / 102.9 mm | 15 g ±1 | 28 g | Enquire |
| Bottle 03 | 100 ml | PP | 20 mm | 43.1 × 29.3 × 153.3 mm | 104.4 / 122.1 mm | 18 g ±1 | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Foam Bottle 01 | 50 ml | HDPE | 30 mm | 10 g ±1 | 25 g | Enquire | ||
| Foam Bottle 02 | 150 ml | HDPE | 43 mm | 47.3 × 58.7 × 147.7 mm | 89.5 / 108.4 mm | 24 g ±1 | 53 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

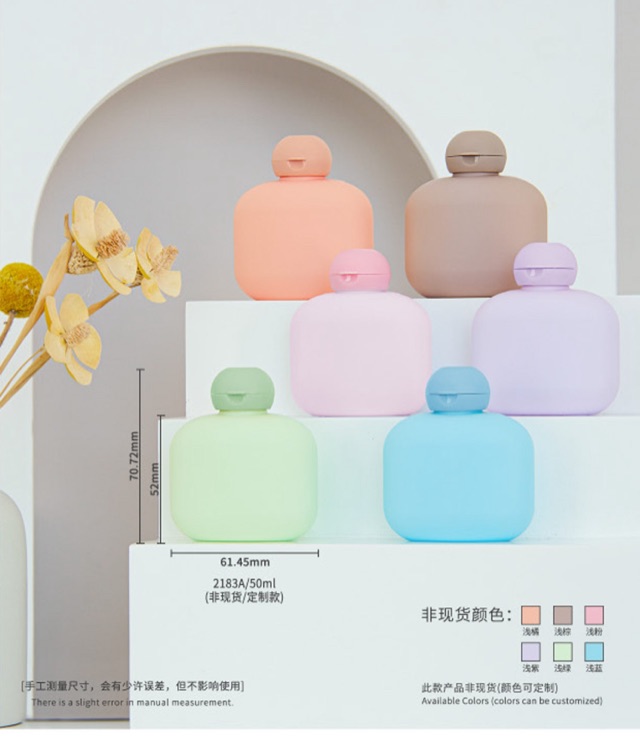

| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Enquiry |
|---|---|---|---|---|---|---|---|
| Squeeze Bottle 01 | 50 ml | LDPE | 20 mm | 61.45 × 30.5 × 70.72 mm | 52 / 63.7 mm | 9 g ±0.5 | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

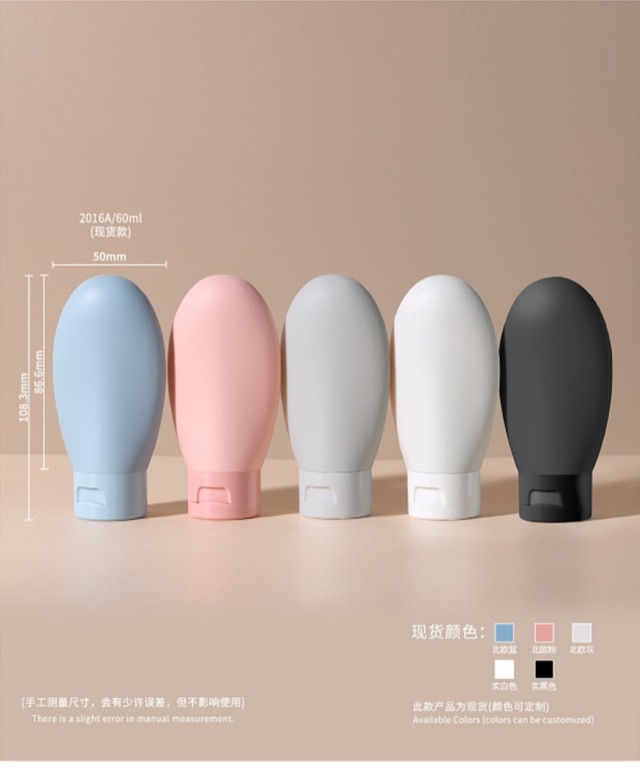

| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Squeeze Bottle 01 | 60 ml | PE | 22 mm | 50 × 108.3 mm | 86.5 / 100.4 mm | 11 g ±0.5 | 15 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|
| Tube 01 | 100 ml | PE | 24 mm | 82 / 95 mm | 14 g ±1 | 20 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Squeeze Bottle 01 | 100 ml | HDPE | 24 mm | 57.8 × 32.65 × 111.8 mm | 88.6 / 104.3 mm | 14 g ±1 | 18 g | Enquire |
| Squeeze Bottle 02 | 150 ml | HDPE | 24 mm | 65.65 × 37.5 × 121.3 mm | 98.8 / 114.8 mm | 19.5 g | 23.5 g | Enquire |
| Squeeze Bottle 03 | 300 ml | HDPE | 24 mm | 83.85 × 46.55 × 150.55 mm | 126.1 / 144.3 mm | 40 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Bottle 01 | 100 ml | HDPE | 43 mm | 47.5 × 164 mm | 95.1 / 115.2 mm | 21 g ±1 | 54 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

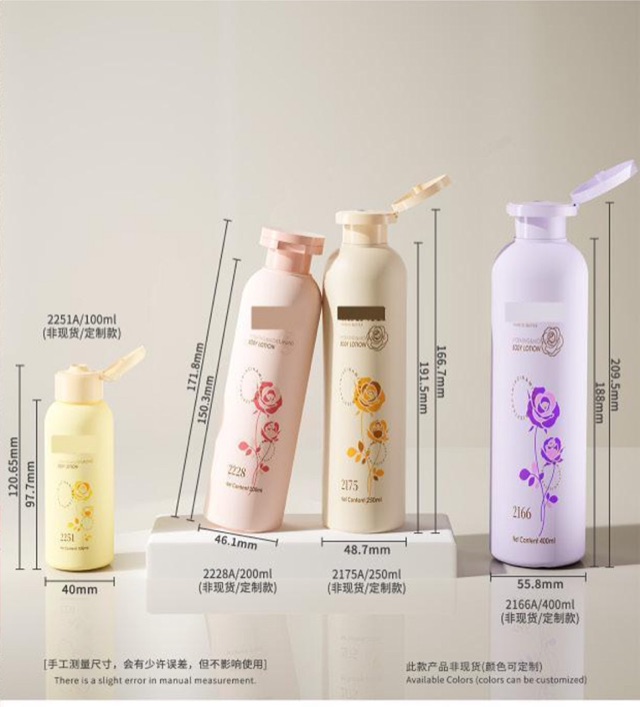

| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|
| Flip-top Bottle 01 | 100 ml | HDPE | 24 mm | 40 × 120.65 mm | 97.7 / 120.9 mm | 16.5 g | Enquire |
| Flip-top Bottle 02 | 200 ml | HDPE | 24 mm | 46.1 × 171.8 mm | 150.3 / 163.8 mm | 32 g | Enquire |
| Flip-top Bottle 03 | 250 ml | HDPE | 24 mm | 48.7 × 191.5 mm | 166.7 / 185.5 mm | 30.5 g | Enquire |
| Flip-top Bottle 04 | 400 ml | HDPE | 24 mm | 55.8 × 209.5 mm | 188 / 204.4 mm | 36.5 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

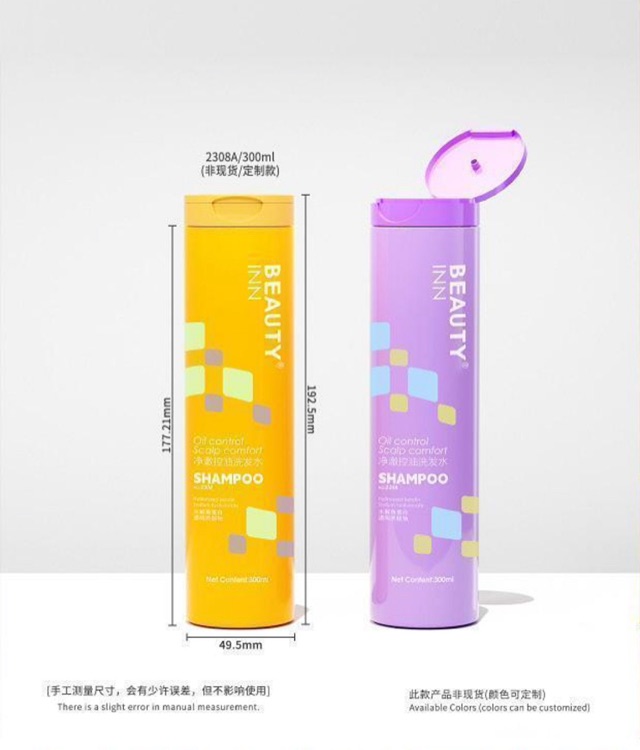

| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Squeeze Bottle 01 | 300 ml | HDPE | 24 mm | 49.5 × 192.5 mm | 177.21 / 189.35 mm | 25 g ±1 | 34 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
| Format | Capacity | Overall size | Height to shoulder / mouth | Bottle weight | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|
| Flip-top Jar 01 | 300 g | 64 × 140.3 mm | 123.22 / 136.8 mm | 24 g ±1 | 30 g | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

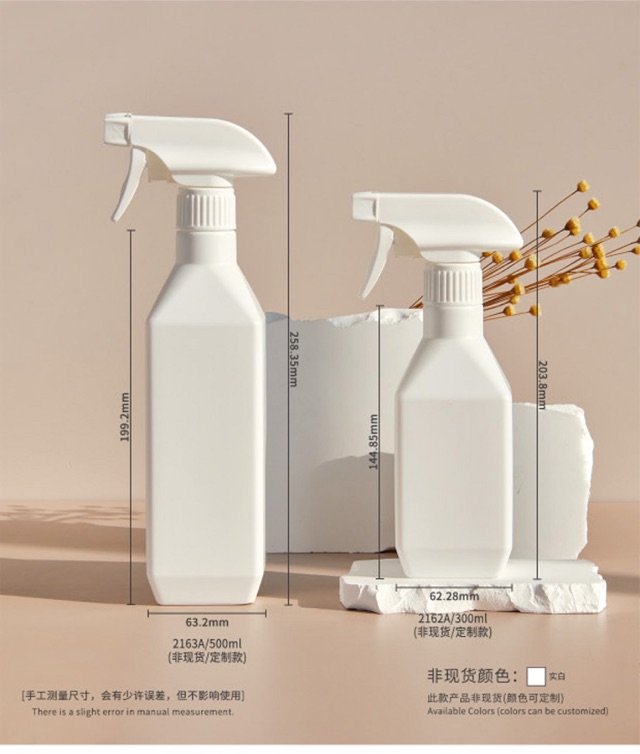

| Format | Capacity | Material | Neck | Overall size | Height to shoulder / mouth | Weight, filled | Enquiry |
|---|---|---|---|---|---|---|---|
| Spray Bottle 01 | 300 ml | HDPE | 28 mm | 62.28 × 203.8 mm | 144.85 / 160.8 mm | 66.7 g | Enquire |
| Spray Bottle 02 | 500 ml | HDPE | 28 mm | 63.2 × 258.35 mm | 199.2 / 215.2 mm | Enquire |
Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.
The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.
Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.
Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.
