Bottles & Jars

Cosmetic Bottles and Jars, with Their Published Dimensions

Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Product groups	169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more
Formats	514 across 169 plates
Capacity	5 – 800 ml · 3 – 330 g (cream jars, measured by weight)
Neck	Printed per format; 12 – 85 mm across the range we can read
Materials	ABS, HDPE, LDPE, PE, PET, PETG, PP
Table columns	They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes
Decoration	Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes
Order quantity	Confirmed per project — it depends on the format, the tooling and the decoration
Sampling	Available. Formats already in tooling sample fastest; a custom prototype follows design approval

Applications beyond the cosmetic category

The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.

The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.

What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.

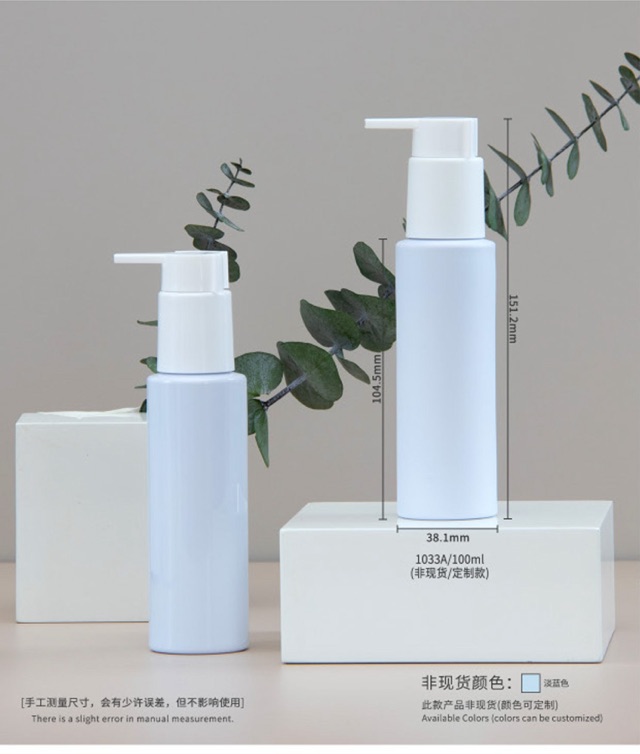

Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 53 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 53Lotion Bottles

1 format · 100 ml

Lotion Bottles: published dimensions
Format	Capacity	Neck	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Lotion Bottle 01	100 ml (brimful 115 ±2 ml)	24 mm	104.5 / 123.1 mm	15 g	31 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 54 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 54PET Lotion Bottles

2 formats · 125 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Bottle 01	125 ml	PET	20 mm	47.8 × 120.3 mm	74.5 / 91.1 mm	28 g	41 g	Enquire
Lotion Bottle 01	125 ml	PET	20 mm	52.4 × 120.7 mm	74.9 / 91.7 mm	28 g	41 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Cleansing Oil Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 55 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 55PET Cleansing Oil Bottles

6 formats · 150 ml

PET Cleansing Oil Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Bottle weight	Weight, filled	Enquiry
Cleansing Oil Bottle 01	150 ml	PET	24 mm		35 g	45.8 g	Enquire
Cleansing Oil Bottle 02	150 ml	PET	24 mm			45.8 g	Enquire
Cleansing Oil Bottle 03	150 ml	PET	24 mm	46 × 164 mm	35 g	45.8 g	Enquire
Cleansing Oil Bottle 04	150 ml	PET	24 mm	45.6 × 163.5 mm	35 g	45.8 g	Enquire
Cleansing Oil Bottle 05	150 ml	PET	24 mm			45.8 g	Enquire
Cleansing Oil Bottle 06	150 ml	PET	24 mm			45.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 56 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 56PET Spray Bottles

1 format · 150 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	150 ml	PET	24 mm	38.6 × 197.3 mm	142 / 165.3 mm	18 g	33.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 57 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 57PET Foam Bottles

2 formats · 150–200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	150 ml	PET	43 mm	58.2 × 149.8 mm	89 / 109.3 mm	27 g	56.8 g	Enquire
Foam Bottle 02	200 ml	PET	43 mm		104 / 124.5 mm		56.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 58 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 58PET Lotion Bottles

2 formats · 200–250 ml

PET Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
PET · 200 ml
Lotion Bottle 01	200 ml	PET	28 mm	67.8 × 39.2 × 149.7 mm	107.9 / 125.1 mm	32 g	39 g	Enquire
PET · 250 ml
Lotion Bottle 01	250 ml	PET	24 mm		124.9 / 142.3 mm	27 g	39.2 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

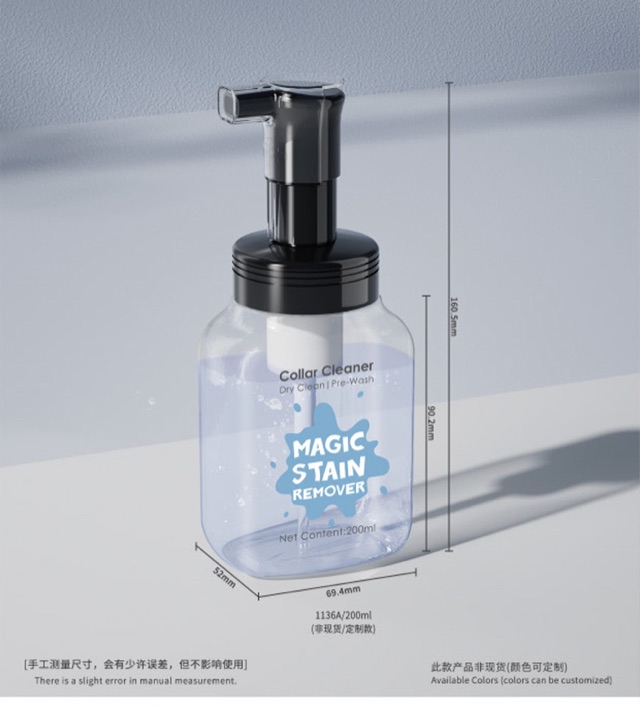

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 59 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 59PET Foam Bottles

1 format · 200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	200 ml	PET	43 mm	52 × 69.4 × 160.5 mm	90.2 / 105.6 mm	36 g	65.2 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 60 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 60PET Foam Bottles

3 formats · 200–500 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	200 ml	PET	43 mm	61.8 × 162.6 mm	90.5 / 110.1 mm	27 g	56.6 g	Enquire
Foam Bottle 02	300 ml	PET	43 mm	69.2 × 175.9 mm	103 / 123.1 mm	35 g	64.6 g	Enquire
Foam Bottle 03	500 ml	PET	43 mm	74 × 214.5 mm	141.2 / 161.9 mm	45 g	75.1 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 61 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 61PET Foam Bottles

3 formats · 200 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 02	200 ml	PET	43 mm	59.4 × 67.7 × 156 mm	86.3 / 102.8 mm	35 g	65.2 g	Enquire
Foam Bottle 03	200 ml	PET	43 mm	64 × 155.3 mm	84.7 / 101 mm	36 g	65.2 g	Enquire
Foam Bottle 04	200 ml	PET	43 mm	63 × 155.6 mm	84.3 / 101.3 mm	36 g	65.2 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Foam Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 62 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 62PET Foam Bottles

2 formats · 200–300 ml

PET Foam Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Foam Bottle 01	200 ml	PET	43 mm	69.9 × 153.4 mm	80.4 / 100.4 mm	27 g	56.5 g	Enquire
Foam Bottle 02	300 ml	PET	43 mm	75.6 × 171.7 mm	99.5 / 118.8 mm	35 g	64.3 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 63 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 63PET Spray Bottles

3 formats · 200–300 ml

PET Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	200 ml	PET	24 mm	56.1 × 189.6 mm	117.8 / 135.3 mm	24 g	38 g	Enquire
Spray Bottle 02	300 ml	PET	24 mm	52.8 × 195.6 mm	129.6 / 145.6 mm	30 g	43.8 g	Enquire
Spray Bottle 03	200 ml	PET	24 mm	51 × 209 mm	138 / 157.7 mm	24 g	41 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Mouthwash Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 64 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 64PET Mouthwash Bottles

2 formats · 250–500 ml

PET Mouthwash Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Mouthwash Bottle 01	250 ml	PET	28 mm	76 × 176.2 mm	135.1 / 174 mm		36.3 g	Enquire
Mouthwash Bottle 02	500 ml	PET	28 mm	92 × 210 mm	168.2 / 208.3 mm	48 g	51.3 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PET Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 65 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 65PET Bottles

2 formats · 250 ml

PET Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Bottle 01	250 ml	PET	20 mm	52.03 × 172 mm	133.5 / 150 mm		43 g	Enquire
Bottle 02	250 ml	PET	20 mm	53.27 × 169 mm	131.8 / 151.5 mm	33 g		Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Where These Come From

The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.

Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.

Send Us the Format You Have in Mind

Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.
