Bottles & Jars

Cosmetic Bottles and Jars, with Their Published Dimensions

Spray, lotion, foam, airless, dropper, pump and squeeze bottles, cream jars and tubes — 514 formats from the product catalogue of a manufacturing partner, with the capacity, neck, overall size and weight figures that catalogue prints for each one. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Product groups	169 — spray bottles, lotion bottles, foam bottles, bottles, dropper bottles, cream jars, pump bottles, squeeze bottles and more
Formats	514 across 169 plates
Capacity	5 – 800 ml · 3 – 330 g (cream jars, measured by weight)
Neck	Printed per format; 12 – 85 mm across the range we can read
Materials	ABS, HDPE, LDPE, PE, PET, PETG, PP
Table columns	They vary by plate, because the source catalogue's do — a plate that prints no bottle weight has no bottle-weight column here rather than a column of dashes
Decoration	Spray coating, silk-screen printing, hot stamping, plating, labeling and texture finishes
Order quantity	Confirmed per project — it depends on the format, the tooling and the decoration
Sampling	Available. Formats already in tooling sample fastest; a custom prototype follows design approval

Applications beyond the cosmetic category

The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. None of them is defined by the product inside it.

The neck figure is the one that travels furthest. It is printed per format across 12 - 85 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.

What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.

PETG Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 144 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 144PETG Bottles

2 formats · 20–30 ml

PETG Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Bottle 01	20 ml	PETG	18 mm	31.9 × 89.7 mm	52 / 64.9 mm	16-17.5 g	22.8 g	Enquire
Bottle 02	30 ml	PETG	18 mm	34.5 × 100.5 mm	63.1 / 76 mm	18-19 g	24.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 145 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 145PETG Spray Bottles

6 formats · 15–120 ml

PETG Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
PETG · 15–30 ml
Dropper Bottle 03	15 ml	PETG		28.9 × 78.8 mm	50.3 / 60.7 mm	16 g	20 g	Enquire
Dropper Bottle 04	30 ml	PETG	20 mm	36.8 × 103 mm	64.5 / 78.4 mm	29 g	37.8 g	Enquire
Dropper Bottle 05		PETG	20 mm	41 × 110.9 mm	72.1 / 35.5 mm	37 g	44 g	Enquire
PETG · 80–120 ml
Spray Bottle 01	80 ml	PETG	20 mm	45 × 133.1 mm	87.2 / 101.5 mm	47 g		Enquire
Spray Bottle 02	100 ml	PETG	20 mm	45.8 × 140.3 mm	94.1 / 109 mm	47 g	60 g	Enquire
Spray Bottle 03	120 ml	PETG	20 mm	45 × 159.45 mm	113.4 / 126.2 mm		60 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Dropper Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 146 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 146PETG Dropper Bottles

3 formats · 30–80 ml

PETG Dropper Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Bottle weight	Weight, filled	Enquiry
Dropper Bottle 01	30 ml	PETG	20 mm	36.8 × 98.8 mm	29 g	37.8 g	Enquire
Dropper Bottle 02	50 ml (brimful 64 ±2 ml)	PETG	20 mm	41 × 107 mm	37 g	44 g	Enquire
Dropper Bottle 03	80 ml	PETG	20 mm	45 × 121.6 mm	47 g	60 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

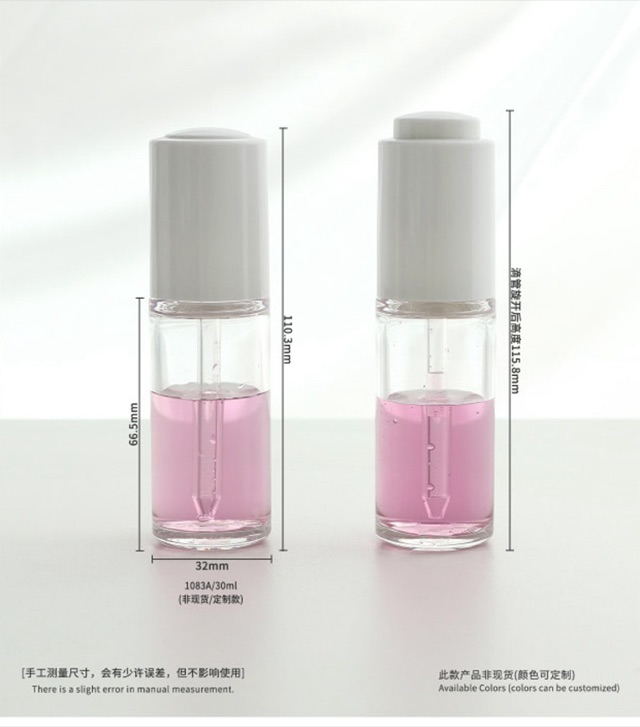

PETG Dropper Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 147 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 147PETG Dropper Bottles

1 format · 30 ml

PETG Dropper Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Dropper Bottle 02	30 ml	PETG	20 mm	32 × 110.3 mm	66.5 / 82.8 mm	47 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 148 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 148PETG Spray Bottles

6 formats · 30–120 ml

PETG Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	30 ml	PETG	20 mm	35.05 × 115.1 mm	68.9 / 86.1 mm	35 g	63 g	Enquire
Spray Bottle 02	40 ml	PETG	20 mm	35.05 × 132.05 mm		45 g	70 g	Enquire
Spray Bottle 03	60 ml	PETG	20 mm	44.2 × 118.1 mm		39 g	75 g	Enquire
Spray Bottle 04	80 ml	PETG	20 mm	44.2 × 135.8 mm		46 g	82.5 g	Enquire
Spray Bottle 05	100 ml	PETG	20 mm	44.2 × 151.9 mm		55 g	91.5 g	Enquire
Spray Bottle 06	120 ml	PETG		44.2 × 170.2 mm	120.5 / 137.5 mm	64 g	100.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 149 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 149PETG Spray Bottles

6 formats · 30–120 ml

PETG Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 07	30 ml	PETG	20 mm	35.05 × 115.1 mm	68.9 / 36.1 mm	35 g		Enquire
Spray Bottle 08	40 ml	PETG	20 mm	35.05 × 132.05 mm	85.5 / 102.8 mm	45 g	70 g	Enquire
Spray Bottle 09	60 ml	PETG	20 mm	44.2 × 118.1 mm	68.65 / 35.4 mm	39 g		Enquire
Spray Bottle 10	80 ml	PETG	20 mm	44.2 × 135.8 mm		46 g	82.5 g	Enquire
Spray Bottle 11	100 ml	PETG	20 mm	44.2 × 151.9 mm	102.2 / 119.3 mm	55 g	91.5 g	Enquire
Spray Bottle 12	120 ml	PETG	20 mm	44.2 × 170.2 mm	120.5 / 137.5 mm	64 g	100.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

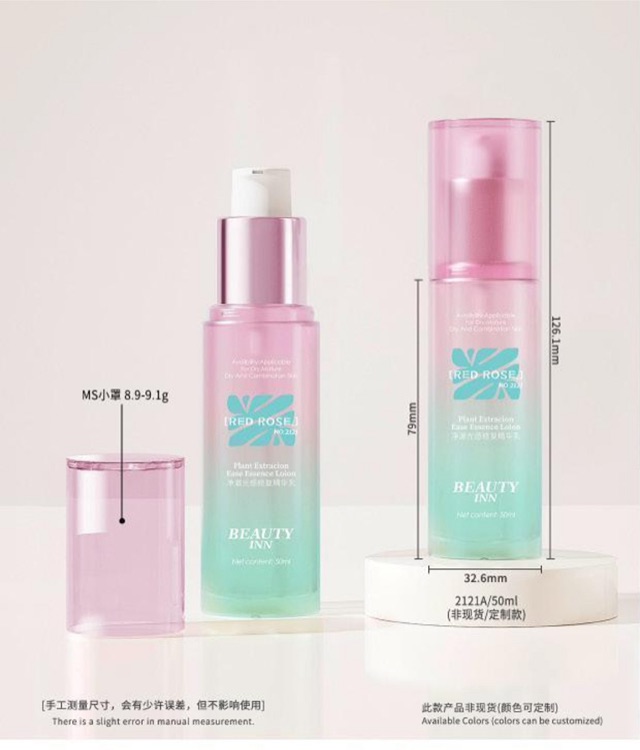

PETG Lotion Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 150 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 150PETG Lotion Bottles

1 format · 50 ml

PETG Lotion Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Lotion Bottle 01	50 ml	PETG	20 mm	32.6 × 126.1 mm	79 / 98 mm	38 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 151 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 151PETG Spray Bottles

2 formats · 50 ml

PETG Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Enquiry
Spray Bottle 02	50 ml	PETG		36.8 × 126.8 mm	84.7 / 100 mm	46 g	Enquire
Lotion Bottle 02	50 ml	PETG	20 mm	36.8 × 126.8 mm	84.7 / 100 mm	45 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 152 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 152PETG Spray Bottles

8 formats · 50–120 ml

PETG Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Spray Bottle 01	50 ml	PETG	20 mm	40 × 115.7 mm	69.5 / 85.5 mm	39 g		Enquire
Spray Bottle 02	80 ml	PETG	20 mm	43.8 × 127.8 mm	81.4 / 98.2 mm	45 g		Enquire
Spray Bottle 03	100 ml	PETG	20 mm	45.1 × 141.8 mm	95.2 / 112.2 mm		79 g	Enquire
Spray Bottle 04	120 ml	PETG	20 mm	45.1 × 159.4 mm	112.8 / 129.4 mm	64 g	87 g	Enquire
Lotion Bottle 01	50 ml	PETG	20 mm	40 × 115.7 mm	69.5 / 86.5 mm	39 g	62.5 g	Enquire
Lotion Bottle 02	80 ml	PETG	20 mm	43.8 × 127.8 mm	81.4 / 98.2 mm		69.5 g	Enquire
Lotion Bottle 03	100 ml	PETG	20 mm	45.1 × 141.8 mm	95.2 / 112.2 mm	55 g	78.5 g	Enquire
Lotion Bottle 04	120 ml	PETG	20 mm	45.1 × 159.4 mm	112.8 / 129.4 mm	64 g	87.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PETG Spray Bottles — the formats in this group, photographed together as published in the source catalogue. — Plate 153 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 153PETG Spray Bottles

8 formats · 8–120 ml

PETG Spray Bottles: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
PETG · 50–120 ml
Spray Bottle 05	50 ml	PETG	20 mm	41.3 × 111.2 mm	55.1 / 81.6 mm	39 g	52 g	Enquire
Spray Bottle 06	80 ml	PETG	20 mm	43.5 × 130.7 mm	84.3 / 101 mm	46 g		Enquire
Spray Bottle 07	100 ml	PETG	20 mm		102.2 / 118.7 mm	55 g	78 g	Enquire
Spray Bottle 08	120 ml	PETG	20 mm	45.6 × 159.6 mm	113.4 / 129.8 mm	64 g	87 g	Enquire
PETG · 8–120 ml
Lotion Bottle 01	50 ml	PETG	20 mm	41.3 × 111.2 mm	65.1 / 81.6 mm	39 g		Enquire
Lotion Bottle 02	8 ml	PETG	20 mm	43.5 × 130.7 mm		45 g	69.5 g	Enquire
Lotion Bottle 03	100 ml	PETG	20 mm	44.1 × 148.6 mm	102.2 / 118.7 mm	55 g	78.5 g	Enquire
Lotion Bottle 04	120 ml	PETG	20 mm		113.4 / 129.8 mm	64 g	87.5 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PP Cream Jars — the formats in this group, photographed together as published in the source catalogue. — Plate 154 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 154PP Cream Jars

7 formats · 3–80 g

PP Cream Jars: published dimensions
Format	Capacity	Material	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Cream Jar 01	3 g	PP	34 × 27.5 mm	15 / 26 mm		Enquire
Cream Jar 02	5 g	PP	34 × 27.5 mm	15 / 26 mm		Enquire
Cream Jar 03	10 g	PP	39.3 × 33 mm	21 / 30.5 mm	10.7 g	Enquire
Cream Jar 04	15 g	PP	46.5 × 38.5 mm	22 / 32 mm	16.1 g	Enquire
Cream Jar 05	30 g	PP	60 × 42 mm	24 / 36 mm	31.2 g	Enquire
Cream Jar 06	50 g	PP	67.5 × 49.8 mm	30 / 45 mm	43.7 g	Enquire
Cream Jar 07	80 g	PP	78.5 × 56.2 mm	34 / 50 mm		Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

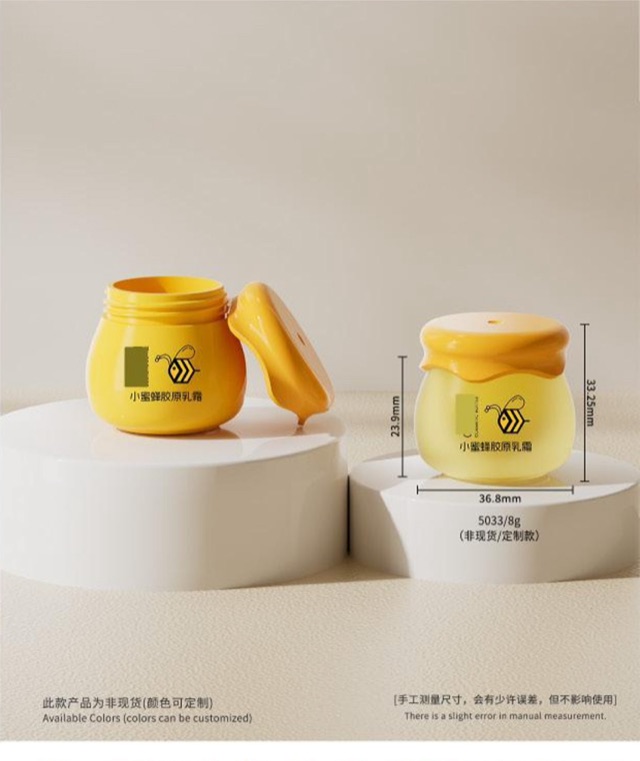

Cream Jars — the formats in this group, photographed together as published in the source catalogue. — Plate 155 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 155Cream Jars

1 format · 8 g

Cream Jars: published dimensions
Format	Capacity	Neck	Overall size	Height to shoulder / mouth	Bottle weight	Weight, filled	Enquiry
Cream Jar 01	8 g	29 mm	36.8 × 33.25 mm	23.9 / 32 mm	13.9 g	16.4 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

PP Cream Jars — the formats in this group, photographed together as published in the source catalogue. — Plate 156 of 169: the group as published, with the catalogue's own annotations kept as printed.

Plate 156PP Cream Jars

2 formats · 30–50 g

PP Cream Jars: published dimensions
Format	Capacity	Material	Neck	Overall size	Height to shoulder / mouth	Weight, filled	Enquiry
Cream Jar 01	30 g	PP	45 mm	55.3 × 49.5 mm	24.51 / 36 mm	33.3 g	Enquire
Cream Jar 02	50 g	PP	55 mm	65.25 × 58.41 mm	28.92 / 43 mm	51.8 g	Enquire

Measured by hand on the sampled part, so a small tolerance applies. Re-confirmed against your formula before tooling.

Where These Come From

The capacity, neck, size and weight figures on this page are reprinted from the product catalogue of a manufacturing partner in our network; partner identities stay confidential to us. That catalogue prints its own caveat, and it applies here unchanged: a slight error in manual measurement is possible. None of these are held as stock and none is sold at a catalogue price — each is made to order against your own specification, with our quality control and project management on top, and every dimension is re-confirmed against your formula before tooling. The reference on each format goes straight into your enquiry, so we know precisely which one you are asking about.

Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.

Send Us the Format You Have in Mind

Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.

Request a Quote Request a Sample
