Home › Packaging Formats › Bottles & Jars › Dropper, Lotion, Pump, Spray & Shampoo

Bottles & Jars

Dropper, Lotion, Pump, Spray and Shampoo Bottles: 53 Formats across 52 Plates from One Source Catalogue

One source catalogue, published the way it was printed: 52 plates in the 12 series its own contents page groups them into, each a photograph of a group of formats with the specification table the catalogue prints beneath it. Across the plates the catalogue prints 217 rows for 53 distinct formats — 52 of the 53 formats are printed on more than one plate, and each of those plates repeats the figures for its own page; where such a plate photographs the format differently it is in the finish the source shot it in, not in the figures. The page reproduces every plate, in the order the catalogue prints them. The catalogue's model column is not reproduced: identity, neck finish and thread are project questions, not page claims. None of it is stock: every format is made to order, and capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Formats53 — 44 bottles (15 – 400 ml) and 9 cream jars (7 – 50 g)
Plates52 — one per catalogue page, in the source's own 12 series, 1 to 8 formats each
Printed rows217 — the catalogue photographs 52 formats on more than one plate, so the table holds more rows than there are formats; each plate prints the figures for its own page
DiameterØ 31.3–72.0 mm
Height25.8–163.6 mm
Body materialPETG on 50, PP on 3 — the material each plate prints for the body; the parts of the closure are not published here. One format contradicts itself between plates: Cream Jar 04 prints PETG on plates 4, 5, 7, 8 and 10; PS on plate 27. Both are reproduced as printed rather than reconciled, because each plate is the source's own page.
WeightOne figure per format, 12 – 75 g, exactly as the catalogue prints it. It does not say whether that is the empty bottle or the filled one, so neither do we
Order quantityConfirmed per project — it depends on the format, the tooling and the decoration
SamplingAvailable. Formats already in tooling sample fastest; a custom prototype follows design approval

Applications beyond the cosmetic category

The columns on this page are capacity, neck, overall size and weight - the figures a filler needs in order to match a container to a closure and a fill line. In most of the catalogues that print tables, all four travel together per format; where a catalogue prints capacity, neck and overall size but no weight, no weight is shown; where a catalogue reproduces its formats as an album, each card carries the brim-full (O.F.C.) capacity printed on that format's own drawing. None of them is defined by the product inside it.

The neck figure is the one that travels furthest. It is printed per format in the catalogues that print it, across 12 - 103 mm, so if you are bringing your own closure - a pump, a dropper, a dispensing cap, a metered insert - the neck column is where that conversation starts, whatever the product is.

What we are not is a regulatory partner. We hold no pharmaceutical, medical-device or management-system certification, and we do not issue biocompatibility, extractables or leachables documentation. Whether a format suits a regulated product, and what testing that requires, follows from your formulation and your regulatory route - and those answers come from the material suppliers and the testing laboratories, not from a packaging supplier's own declaration. If that puts work on your side, it is work that was always yours; a container supplier who offers to close it for you is offering a document, not a result.

Cleansing Oil Bottles

3 plates · plates 1–3

Plate 1 — Pump Bottles, 120–150 ml

3 formats · on catalogue page 1

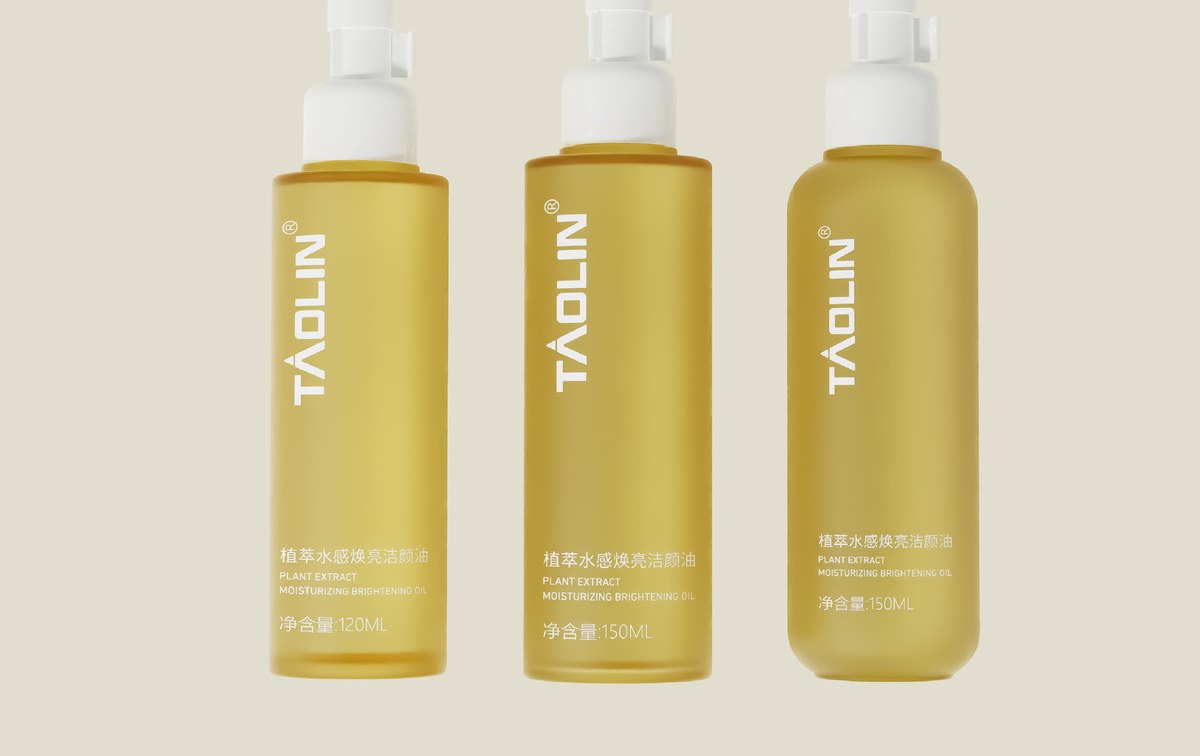

Plate 1 — Pump Bottles, 120–150 ml — the formats on this catalogue page, photographed together as published.
Plate 1 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 1 — Pump Bottles, 120–150 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Pump Bottle 02 120 ml PETG 43.3 mm 138.6 mm 65 g Enquire
Pump Bottle 03 150 ml PETG 46.0 mm 143.8 mm 65 g Enquire
Pump Bottle 04 150 ml PETG 46.9 mm 143.4 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 2 — Pump Bottles, 120–150 ml (the same formats as Plate 1, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 2

Plate 2 — Pump Bottles, 120–150 ml (the same formats as Plate 1, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 2 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 2 — Pump Bottles, 120–150 ml (the same formats as Plate 1, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Pump Bottle 02 also printed on plate 1 120 ml PETG 43.3 mm 138.6 mm 65 g Enquire
Pump Bottle 03 also printed on plate 1 150 ml PETG 46.0 mm 143.8 mm 65 g Enquire
Pump Bottle 04 also printed on plate 1 150 ml PETG 46.9 mm 143.4 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 3 — Pump Bottles, 120–150 ml (2 of the formats on Plate 1, photographed again)

2 formats · all of them printed on an earlier plate as well · on catalogue page 3

Plate 3 — Pump Bottles, 120–150 ml (2 of the formats on Plate 1, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 3 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 3 — Pump Bottles, 120–150 ml (2 of the formats on Plate 1, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Pump Bottle 02 also printed on plate 1 120 ml PETG 43.3 mm 138.6 mm 65 g Enquire
Pump Bottle 03 also printed on plate 1 150 ml PETG 46.0 mm 143.8 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Cylindrical Bottles

7 plates · plates 4–10

Plate 4 — Dropper Bottles, with a 50 g Cream Jar, 50–200 ml

5 formats · on catalogue page 4

Plate 4 — Dropper Bottles, with a 50 g Cream Jar, 50–200 ml — the formats on this catalogue page, photographed together as published.
Plate 4 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 4 — Dropper Bottles, with a 50 g Cream Jar, 50–200 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 04 50 g PETG 61.9 mm 59.5 mm 70 g Enquire
Dropper Bottle 12 50 ml PETG 40.2 mm 87.9 mm 47 g Enquire
Dropper Bottle 20 120 ml PETG 44.0 mm 135.4 mm 65 g Enquire
Dropper Bottle 23 150 ml PETG 46.0 mm 145.6 mm 65 g Enquire
Dropper Bottle 25 200 ml PETG 48.2 mm 163.6 mm 75 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 5 — Dropper Bottles, with a 50 g Cream Jar, 30–180 ml

5 formats · 1 of them printed on an earlier plate as well · on catalogue page 5

Plate 5 — Dropper Bottles, with a 50 g Cream Jar, 30–180 ml — the formats on this catalogue page, photographed together as published.
Plate 5 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 5 — Dropper Bottles, with a 50 g Cream Jar, 30–180 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 04 also printed on plate 4 50 g PETG 61.9 mm 59.5 mm 70 g Enquire
Dropper Bottle 06 30 ml PETG 35.7 mm 79.6 mm 35 g Enquire
Dropper Bottle 16 80 ml PETG 43.9 mm 105.3 mm 55 g Enquire
Dropper Bottle 27 100 ml PETG 43.9 mm 117.5 mm 55 g Enquire
Dropper Bottle 24 180 ml PETG 48.0 mm 154.2 mm 75 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 6 — Dropper and Shampoo Bottles, 50–400 ml

6 formats · 4 of them printed on an earlier plate as well · on catalogue page 6

Plate 6 — Dropper and Shampoo Bottles, 50–400 ml — the formats on this catalogue page, photographed together as published.
Plate 6 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 6 — Dropper and Shampoo Bottles, 50–400 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 12 also printed on plate 4 50 ml PETG 40.2 mm 87.9 mm 47 g Enquire
Dropper Bottle 27 also printed on plate 5 100 ml PETG 43.9 mm 117.5 mm 55 g Enquire
Dropper Bottle 20 also printed on plate 4 120 ml PETG 44.0 mm 135.4 mm 65 g Enquire
Dropper Bottle 23 also printed on plate 4 150 ml PETG 46.0 mm 145.6 mm 65 g Enquire
Shampoo Bottle 01 300 ml PETG 62.2 mm 125.3 mm 65 g Enquire
Shampoo Bottle 02 400 ml PETG 67.8 mm 151.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 7 — Dropper Bottles, with a 50 g Cream Jar, 30–200 ml

5 formats · all of them printed on an earlier plate as well · on catalogue page 7

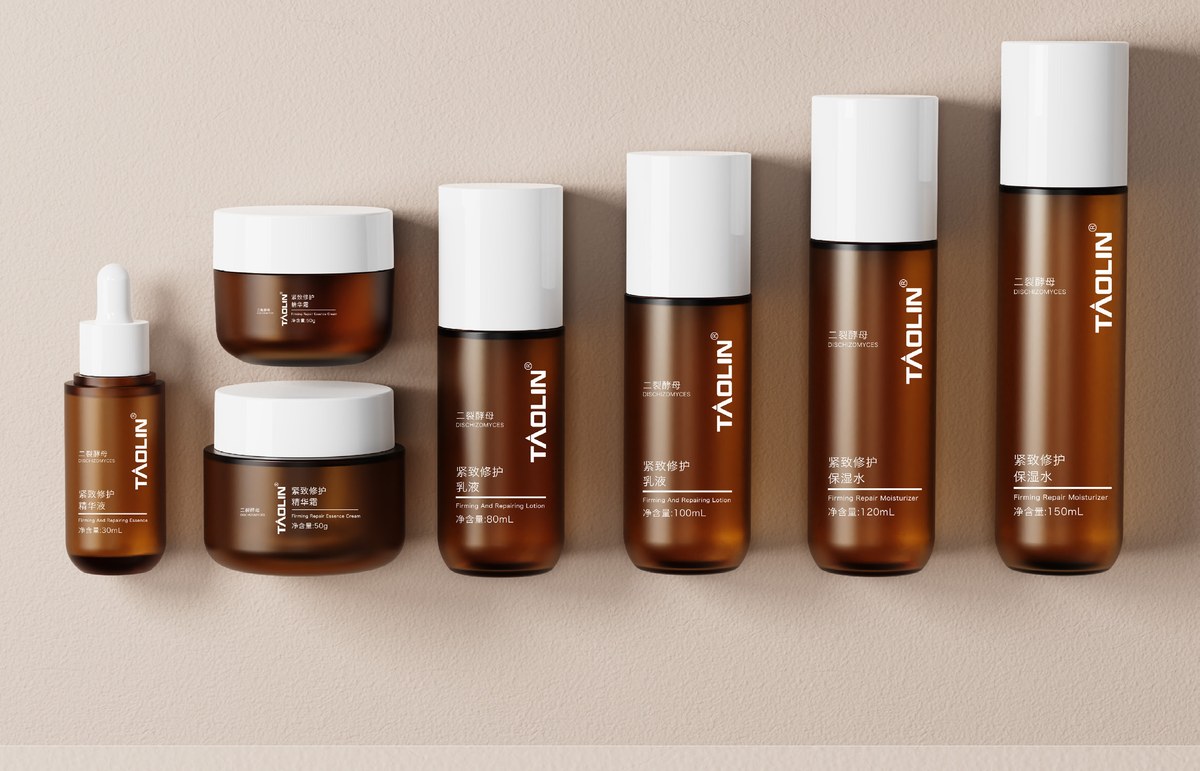

Plate 7 — Dropper Bottles, with a 50 g Cream Jar, 30–200 ml — the formats on this catalogue page, photographed together as published.
Plate 7 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 7 — Dropper Bottles, with a 50 g Cream Jar, 30–200 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 04 also printed on plate 4 50 g PETG 61.9 mm 59.5 mm 70 g Enquire
Dropper Bottle 06 also printed on plate 5 30 ml PETG 35.7 mm 79.6 mm 35 g Enquire
Dropper Bottle 16 also printed on plate 5 80 ml PETG 43.9 mm 105.3 mm 55 g Enquire
Dropper Bottle 24 also printed on plate 5 180 ml PETG 48.0 mm 154.2 mm 75 g Enquire
Dropper Bottle 25 also printed on plate 4 200 ml PETG 48.2 mm 163.6 mm 75 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 8 — Dropper and Shampoo Bottles, with a 50 g Cream Jar, 30–400 ml

7 formats · all of them printed on an earlier plate as well · on catalogue page 8

Plate 8 — Dropper and Shampoo Bottles, with a 50 g Cream Jar, 30–400 ml — the formats on this catalogue page, photographed together as published.
Plate 8 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 8 — Dropper and Shampoo Bottles, with a 50 g Cream Jar, 30–400 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 04 also printed on plate 4 50 g PETG 61.9 mm 59.5 mm 70 g Enquire
Dropper Bottle 06 also printed on plate 5 30 ml PETG 35.7 mm 79.6 mm 35 g Enquire
Dropper Bottle 16 also printed on plate 5 80 ml PETG 43.9 mm 105.3 mm 55 g Enquire
Dropper Bottle 27 also printed on plate 5 100 ml PETG 43.9 mm 117.5 mm 55 g Enquire
Dropper Bottle 24 also printed on plate 5 180 ml PETG 48.0 mm 154.2 mm 75 g Enquire
Shampoo Bottle 01 also printed on plate 6 300 ml PETG 62.2 mm 125.3 mm 65 g Enquire
Shampoo Bottle 02 also printed on plate 6 400 ml PETG 67.8 mm 151.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 9 — Dropper Bottles, 150–200 ml

3 formats · all of them printed on an earlier plate as well · on catalogue page 9

Plate 9 — Dropper Bottles, 150–200 ml — the formats on this catalogue page, photographed together as published.
Plate 9 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 9 — Dropper Bottles, 150–200 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 23 also printed on plate 4 150 ml PETG 46.0 mm 145.6 mm 65 g Enquire
Dropper Bottle 24 also printed on plate 5 180 ml PETG 48.0 mm 154.2 mm 75 g Enquire
Dropper Bottle 25 also printed on plate 4 200 ml PETG 48.2 mm 163.6 mm 75 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 10 — Dropper Bottles, with a 50 g Cream Jar, 50–200 ml (the same formats as Plate 4, photographed again)

5 formats · all of them printed on an earlier plate as well · on catalogue page 10

Plate 10 — Dropper Bottles, with a 50 g Cream Jar, 50–200 ml (the same formats as Plate 4, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 10 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 10 — Dropper Bottles, with a 50 g Cream Jar, 50–200 ml (the same formats as Plate 4, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 04 also printed on plate 4 50 g PETG 61.9 mm 59.5 mm 70 g Enquire
Dropper Bottle 12 also printed on plate 4 50 ml PETG 40.2 mm 87.9 mm 47 g Enquire
Dropper Bottle 20 also printed on plate 4 120 ml PETG 44.0 mm 135.4 mm 65 g Enquire
Dropper Bottle 23 also printed on plate 4 150 ml PETG 46.0 mm 145.6 mm 65 g Enquire
Dropper Bottle 25 also printed on plate 4 200 ml PETG 48.2 mm 163.6 mm 75 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Spray Bottles

2 plates · plates 11–12

Plate 11 — Spray Bottles, 100–120 ml

2 formats · on catalogue page 11

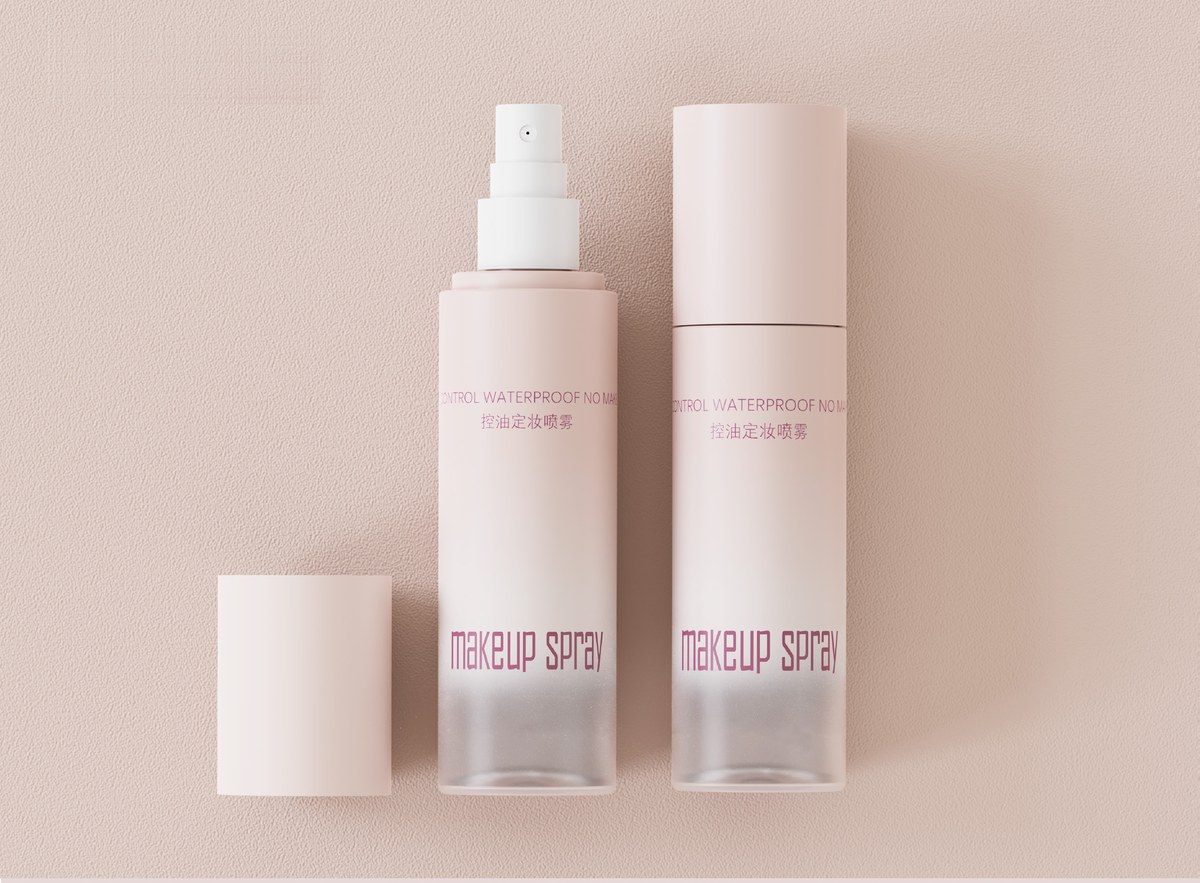

Plate 11 — Spray Bottles, 100–120 ml — the formats on this catalogue page, photographed together as published.
Plate 11 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 11 — Spray Bottles, 100–120 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Spray Bottle 01 100 ml PETG 40.4 mm 128.0 mm 40 g Enquire
Spray Bottle 02 120 ml PETG 40.5 mm 143.0 mm 40 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 12 — Spray Bottles, 100–120 ml (the same formats as Plate 11, photographed again)

2 formats · all of them printed on an earlier plate as well · on catalogue page 12

Plate 12 — Spray Bottles, 100–120 ml (the same formats as Plate 11, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 12 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 12 — Spray Bottles, 100–120 ml (the same formats as Plate 11, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Spray Bottle 01 also printed on plate 11 100 ml PETG 40.4 mm 128.0 mm 40 g Enquire
Spray Bottle 02 also printed on plate 11 120 ml PETG 40.5 mm 143.0 mm 40 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Round-Shoulder, Round-Base Bottles (1)

4 plates · plates 13–16

Plate 13 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 15–150 ml

8 formats · 1 of them printed on an earlier plate as well · on catalogue page 13

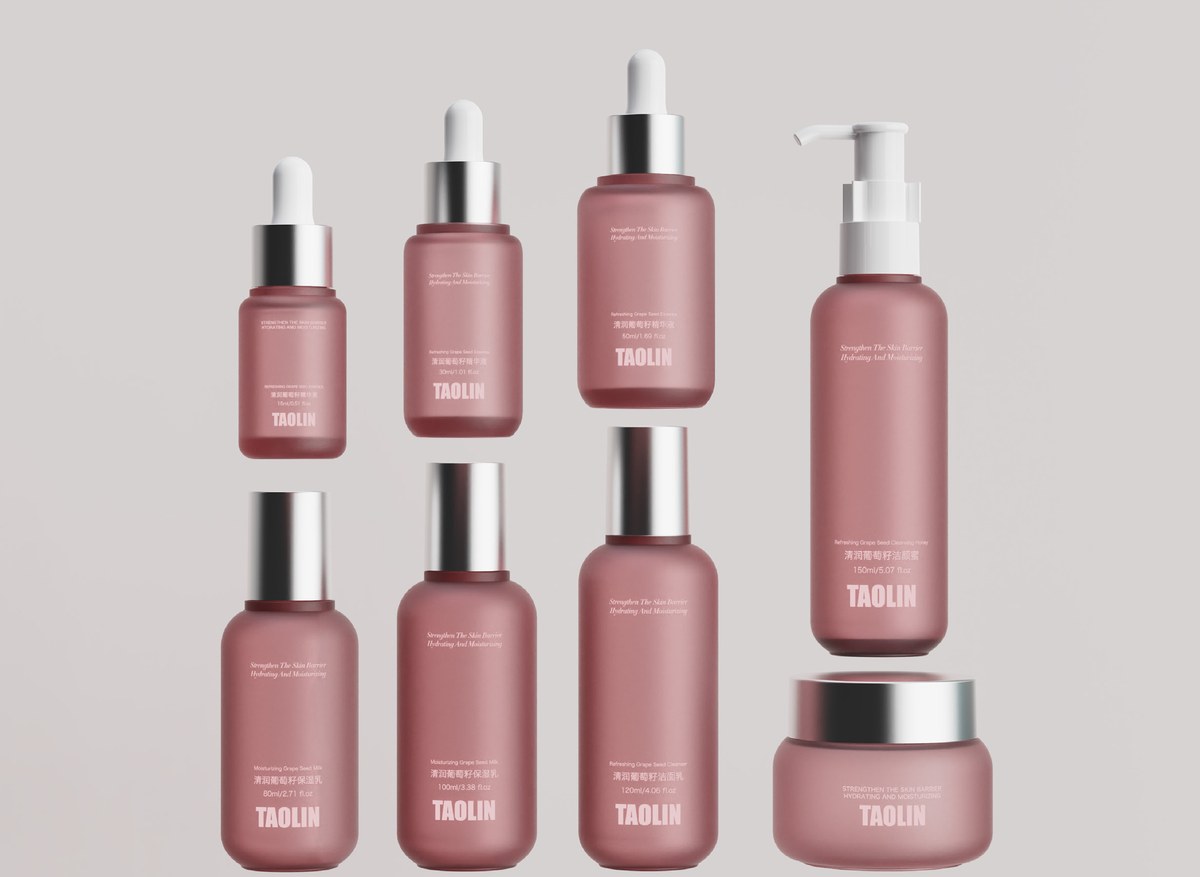

Plate 13 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 15–150 ml — the formats on this catalogue page, photographed together as published.

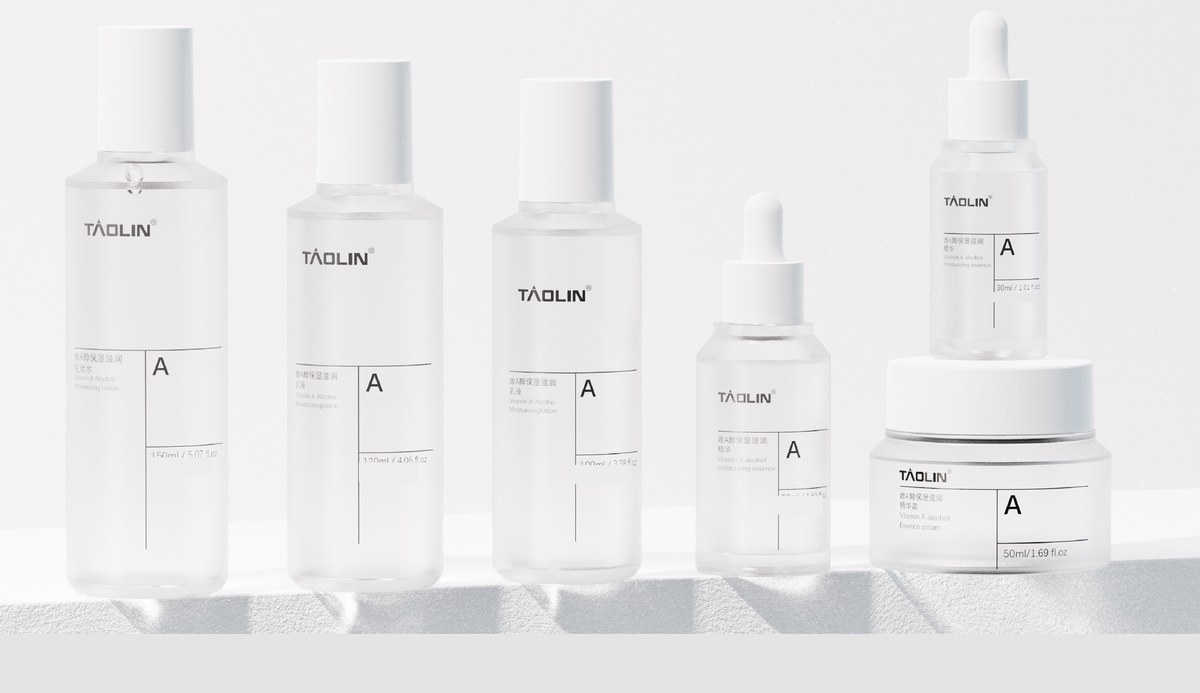

Plate 13 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 13 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 15–150 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 26 15 ml PETG 31.5 mm 63.2 mm 25 g Enquire
Dropper Bottle 07 30 ml PETG 36.1 mm 77.9 mm 35 g Enquire
Dropper Bottle 13 50 ml PETG 41.5 mm 83.6 mm 47 g Enquire
Pump Bottle 01 80 ml PETG 45.1 mm 101.7 mm 47 g Enquire
Lotion Bottle 04 100 ml PETG 46.0 mm 111.7 mm 55 g Enquire
Lotion Bottle 07 120 ml PETG 46.2 mm 123.8 mm 55 g Enquire
Pump Bottle 04 also printed on plate 1 150 ml PETG 46.9 mm 143.4 mm 65 g Enquire
Cream Jar 08 50 g PETG 72.0 mm 61.8 mm 50 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 14 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 15–150 ml (the same formats as Plate 13, photographed again)

8 formats · all of them printed on an earlier plate as well · on catalogue page 14

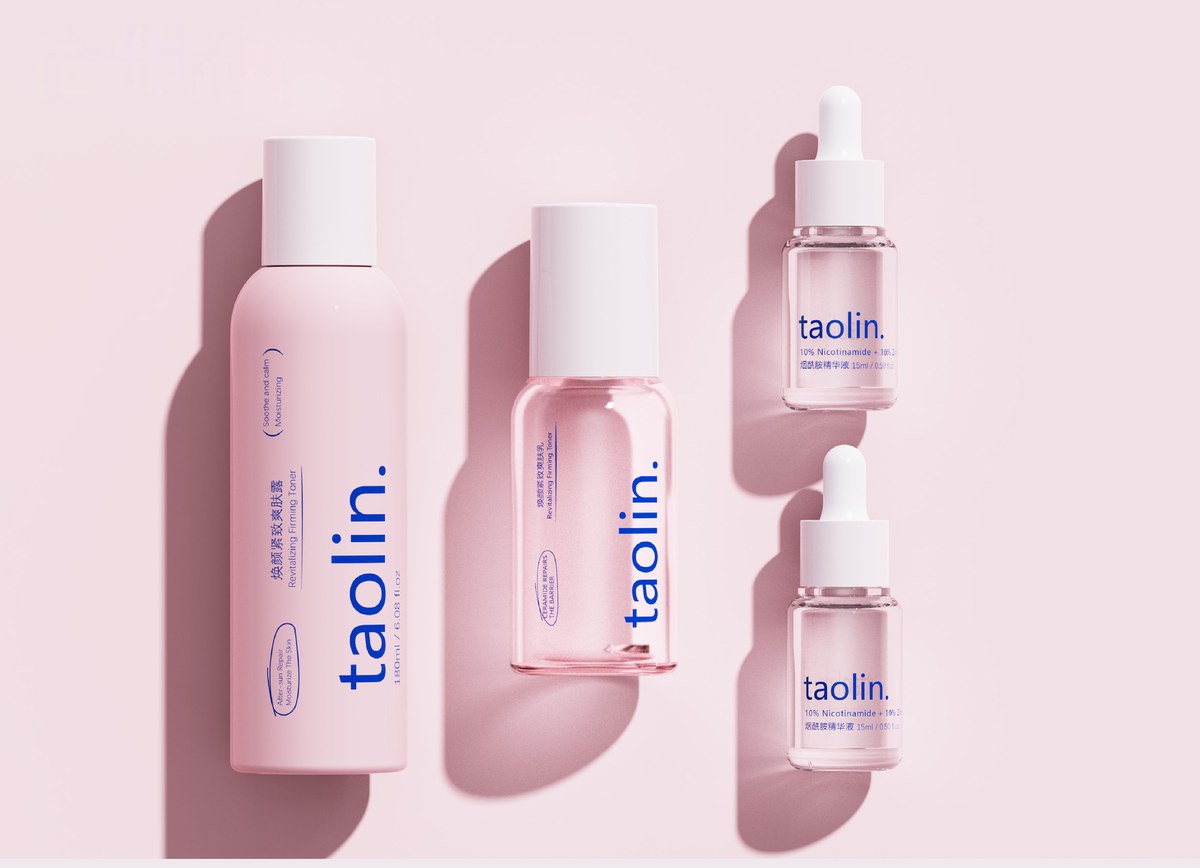

Plate 14 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 15–150 ml (the same formats as Plate 13, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 14 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 14 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 15–150 ml (the same formats as Plate 13, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 26 also printed on plate 13 15 ml PETG 31.5 mm 63.2 mm 25 g Enquire
Dropper Bottle 07 also printed on plate 13 30 ml PETG 36.1 mm 77.9 mm 35 g Enquire
Dropper Bottle 13 also printed on plate 13 50 ml PETG 41.5 mm 83.6 mm 47 g Enquire
Pump Bottle 01 also printed on plate 13 80 ml PETG 45.1 mm 101.7 mm 47 g Enquire
Lotion Bottle 04 also printed on plate 13 100 ml PETG 46.0 mm 111.7 mm 55 g Enquire
Lotion Bottle 07 also printed on plate 13 120 ml PETG 46.2 mm 123.8 mm 55 g Enquire
Pump Bottle 04 also printed on plate 1 150 ml PETG 46.9 mm 143.4 mm 65 g Enquire
Cream Jar 08 also printed on plate 13 50 g PETG 72.0 mm 61.8 mm 50 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 15 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 30–150 ml (7 of the formats on Plate 13, photographed again)

7 formats · all of them printed on an earlier plate as well · on catalogue page 15

Plate 15 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 30–150 ml (7 of the formats on Plate 13, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 15 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 15 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 30–150 ml (7 of the formats on Plate 13, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Pump Bottle 04 also printed on plate 1 150 ml PETG 46.9 mm 143.4 mm 65 g Enquire
Lotion Bottle 07 also printed on plate 13 120 ml PETG 46.2 mm 123.8 mm 55 g Enquire
Lotion Bottle 04 also printed on plate 13 100 ml PETG 46.0 mm 111.7 mm 55 g Enquire
Pump Bottle 01 also printed on plate 13 80 ml PETG 45.1 mm 101.7 mm 47 g Enquire
Dropper Bottle 13 also printed on plate 13 50 ml PETG 41.5 mm 83.6 mm 47 g Enquire
Dropper Bottle 07 also printed on plate 13 30 ml PETG 36.1 mm 77.9 mm 35 g Enquire
Cream Jar 08 also printed on plate 13 50 g PETG 72.0 mm 61.8 mm 50 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 16 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 15, photographed again)

7 formats · all of them printed on an earlier plate as well · on catalogue page 16

Plate 16 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 15, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 16 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 16 — Dropper, Lotion and Pump Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 15, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Pump Bottle 04 also printed on plate 1 150 ml PETG 46.9 mm 143.4 mm 65 g Enquire
Lotion Bottle 07 also printed on plate 13 120 ml PETG 46.2 mm 123.8 mm 55 g Enquire
Lotion Bottle 04 also printed on plate 13 100 ml PETG 46.0 mm 111.7 mm 55 g Enquire
Pump Bottle 01 also printed on plate 13 80 ml PETG 45.1 mm 101.7 mm 47 g Enquire
Dropper Bottle 13 also printed on plate 13 50 ml PETG 41.5 mm 83.6 mm 47 g Enquire
Dropper Bottle 07 also printed on plate 13 30 ml PETG 36.1 mm 77.9 mm 35 g Enquire
Cream Jar 08 also printed on plate 13 50 g PETG 72.0 mm 61.8 mm 50 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Round-Shoulder, Round-Base Bottles (2)

3 plates · plates 17–19

Plate 17 — Lotion Bottles, 100–150 ml

3 formats · on catalogue page 17

Plate 17 — Lotion Bottles, 100–150 ml — the formats on this catalogue page, photographed together as published.
Plate 17 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 17 — Lotion Bottles, 100–150 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 02 100 ml PETG 41.6 mm 121.6 mm 40 g Enquire
Lotion Bottle 05 120 ml PETG 42.9 mm 130.5 mm 40 g Enquire
Lotion Bottle 08 150 ml PETG 44.3 mm 142.8 mm 40 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 18 — Lotion Bottles, 100–150 ml (the same formats as Plate 17, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 18

Plate 18 — Lotion Bottles, 100–150 ml (the same formats as Plate 17, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 18 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 18 — Lotion Bottles, 100–150 ml (the same formats as Plate 17, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 02 also printed on plate 17 100 ml PETG 41.6 mm 121.6 mm 40 g Enquire
Lotion Bottle 05 also printed on plate 17 120 ml PETG 42.9 mm 130.5 mm 40 g Enquire
Lotion Bottle 08 also printed on plate 17 150 ml PETG 44.3 mm 142.8 mm 40 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 19 — Lotion Bottles, 100–150 ml (the same formats as Plate 17, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 19

Plate 19 — Lotion Bottles, 100–150 ml (the same formats as Plate 17, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 19 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 19 — Lotion Bottles, 100–150 ml (the same formats as Plate 17, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 02 also printed on plate 17 100 ml PETG 41.6 mm 121.6 mm 40 g Enquire
Lotion Bottle 05 also printed on plate 17 120 ml PETG 42.9 mm 130.5 mm 40 g Enquire
Lotion Bottle 08 also printed on plate 17 150 ml PETG 44.3 mm 142.8 mm 40 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Round-Base Bottles

5 plates · plates 20–24

Plate 20 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml

7 formats · on catalogue page 20

Plate 20 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml — the formats on this catalogue page, photographed together as published.
Plate 20 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 20 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 06 50 g PETG 69.5 mm 62.0 mm 50 g Enquire
Cream Jar 03 50 g PETG 60.0 mm 45.0 mm 70 g Enquire
Dropper Bottle 05 30 ml PETG 35.3 mm 83.0 mm 35 g Enquire
Dropper Bottle 17 80 ml PETG 44.5 mm 103.5 mm 55 g Enquire
Dropper Bottle 19 100 ml PETG 44.5 mm 114.0 mm 55 g Enquire
Dropper Bottle 21 120 ml PETG 44.5 mm 133.5 mm 65 g Enquire
Dropper Bottle 22 150 ml PETG 44.8 mm 153.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 21 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again)

7 formats · all of them printed on an earlier plate as well · on catalogue page 21

Plate 21 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 21 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 21 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 05 also printed on plate 20 30 ml PETG 35.3 mm 83.0 mm 35 g Enquire
Cream Jar 03 also printed on plate 20 50 g PETG 60.0 mm 45.0 mm 70 g Enquire
Cream Jar 06 also printed on plate 20 50 g PETG 69.5 mm 62.0 mm 50 g Enquire
Dropper Bottle 17 also printed on plate 20 80 ml PETG 44.5 mm 103.5 mm 55 g Enquire
Dropper Bottle 19 also printed on plate 20 100 ml PETG 44.5 mm 114.0 mm 55 g Enquire
Dropper Bottle 21 also printed on plate 20 120 ml PETG 44.5 mm 133.5 mm 65 g Enquire
Dropper Bottle 22 also printed on plate 20 150 ml PETG 44.8 mm 153.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 22 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again)

7 formats · all of them printed on an earlier plate as well · on catalogue page 22

Plate 22 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 22 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 22 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 06 also printed on plate 20 50 g PETG 69.5 mm 62.0 mm 50 g Enquire
Cream Jar 03 also printed on plate 20 50 g PETG 60.0 mm 45.0 mm 70 g Enquire
Dropper Bottle 05 also printed on plate 20 30 ml PETG 35.3 mm 83.0 mm 35 g Enquire
Dropper Bottle 17 also printed on plate 20 80 ml PETG 44.5 mm 103.5 mm 55 g Enquire
Dropper Bottle 19 also printed on plate 20 100 ml PETG 44.5 mm 114.0 mm 55 g Enquire
Dropper Bottle 21 also printed on plate 20 120 ml PETG 44.5 mm 133.5 mm 65 g Enquire
Dropper Bottle 22 also printed on plate 20 150 ml PETG 44.8 mm 153.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 23 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again)

7 formats · all of them printed on an earlier plate as well · on catalogue page 23

Plate 23 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 23 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 23 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 03 also printed on plate 20 50 g PETG 60.0 mm 45.0 mm 70 g Enquire
Cream Jar 06 also printed on plate 20 50 g PETG 69.5 mm 62.0 mm 50 g Enquire
Dropper Bottle 05 also printed on plate 20 30 ml PETG 35.3 mm 83.0 mm 35 g Enquire
Dropper Bottle 17 also printed on plate 20 80 ml PETG 44.5 mm 103.5 mm 55 g Enquire
Dropper Bottle 19 also printed on plate 20 100 ml PETG 44.5 mm 114.0 mm 55 g Enquire
Dropper Bottle 21 also printed on plate 20 120 ml PETG 44.5 mm 133.5 mm 65 g Enquire
Dropper Bottle 22 also printed on plate 20 150 ml PETG 44.8 mm 153.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 24 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again)

7 formats · all of them printed on an earlier plate as well · on catalogue page 24

Plate 24 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 24 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 24 — Dropper Bottles, with two 50 g Cream Jars, 30–150 ml (the same formats as Plate 20, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 06 also printed on plate 20 50 g PETG 69.5 mm 62.0 mm 50 g Enquire
Cream Jar 03 also printed on plate 20 50 g PETG 60.0 mm 45.0 mm 70 g Enquire
Dropper Bottle 05 also printed on plate 20 30 ml PETG 35.3 mm 83.0 mm 35 g Enquire
Dropper Bottle 17 also printed on plate 20 80 ml PETG 44.5 mm 103.5 mm 55 g Enquire
Dropper Bottle 19 also printed on plate 20 100 ml PETG 44.5 mm 114.0 mm 55 g Enquire
Dropper Bottle 21 also printed on plate 20 120 ml PETG 44.5 mm 133.5 mm 65 g Enquire
Dropper Bottle 22 also printed on plate 20 150 ml PETG 44.8 mm 153.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Cream Jars

4 plates · plates 25–28

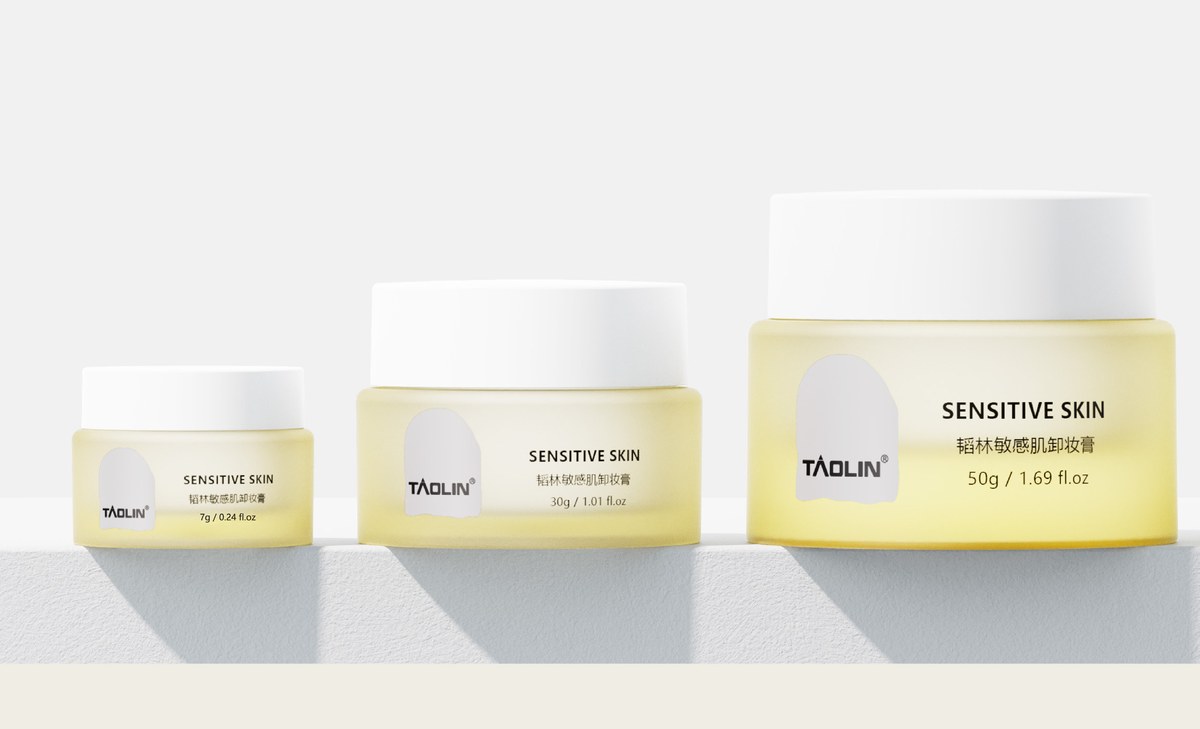

Plate 25 — Cream Jars, 7–50 g

3 formats · on catalogue page 25

Plate 25 — Cream Jars, 7–50 g — the formats on this catalogue page, photographed together as published.
Plate 25 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 25 — Cream Jars, 7–50 g: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 01 7 g PP 38.4 mm 25.8 mm 12 g Enquire
Cream Jar 02 30 g PP 55.3 mm 35.6 mm 30 g Enquire
Cream Jar 05 50 g PP 69.3 mm 47.6 mm 36 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 26 — Cream Jars, 7–50 g (the same formats as Plate 25, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 26

Plate 26 — Cream Jars, 7–50 g (the same formats as Plate 25, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 26 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 26 — Cream Jars, 7–50 g (the same formats as Plate 25, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 01 also printed on plate 25 7 g PP 38.4 mm 25.8 mm 12 g Enquire
Cream Jar 02 also printed on plate 25 30 g PP 55.3 mm 35.6 mm 30 g Enquire
Cream Jar 05 also printed on plate 25 50 g PP 69.3 mm 47.6 mm 36 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 27 — Cream Jar, 50 g (the same format as Plate 4, photographed again)

1 format · all of them printed on an earlier plate as well · on catalogue page 27

Plate 27 — Cream Jar, 50 g (the same format as Plate 4, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 27 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 27 — Cream Jar, 50 g (the same format as Plate 4, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 04 also printed on plate 4 50 g PS 61.9 mm 59.5 mm 70 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 28 — Cream Jar, 50 g

1 format · on catalogue page 28

Plate 28 — Cream Jar, 50 g — the formats on this catalogue page, photographed together as published.
Plate 28 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 28 — Cream Jar, 50 g: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 09 50 g PETG 62.0 mm 52.1 mm 70 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Serum Bottles

6 plates · plates 29–34

Plate 29 — Dropper Bottles, 30–50 ml

4 formats · on catalogue page 29

Plate 29 — Dropper Bottles, 30–50 ml — the formats on this catalogue page, photographed together as published.
Plate 29 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 29 — Dropper Bottles, 30–50 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 03 30 ml PETG 33.1 mm 79.1 mm 35 g Enquire
Dropper Bottle 09 50 ml PETG 36.3 mm 97.9 mm 45 g Enquire
Dropper Bottle 02 30 ml PETG 32.5 mm 84.9 mm 35 g Enquire
Dropper Bottle 08 50 ml PETG 34.4 mm 93.9 mm 45 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 30 — Dropper Bottles, 50 ml

3 formats · on catalogue page 30

Plate 30 — Dropper Bottles, 50 ml — the formats on this catalogue page, photographed together as published.
Plate 30 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 30 — Dropper Bottles, 50 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 10 50 ml PETG 36.6 mm 84.5 mm 47 g Enquire
Dropper Bottle 14 50 ml PETG 47.8 mm 85.7 mm 47 g Enquire
Dropper Bottle 15 50 ml PETG 50.5 mm 86.1 mm 47 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 31 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again)

4 formats · all of them printed on an earlier plate as well · on catalogue page 31

Plate 31 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 31 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 31 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 03 also printed on plate 29 30 ml PETG 33.1 mm 79.1 mm 35 g Enquire
Dropper Bottle 02 also printed on plate 29 30 ml PETG 32.5 mm 84.9 mm 35 g Enquire
Dropper Bottle 09 also printed on plate 29 50 ml PETG 36.3 mm 97.9 mm 45 g Enquire
Dropper Bottle 08 also printed on plate 29 50 ml PETG 34.4 mm 93.9 mm 45 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 32 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 32

Plate 32 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 32 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 32 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 10 also printed on plate 30 50 ml PETG 36.6 mm 84.5 mm 47 g Enquire
Dropper Bottle 14 also printed on plate 30 50 ml PETG 47.8 mm 85.7 mm 47 g Enquire
Dropper Bottle 15 also printed on plate 30 50 ml PETG 50.5 mm 86.1 mm 47 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 33 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again)

4 formats · all of them printed on an earlier plate as well · on catalogue page 33

Plate 33 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 33 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 33 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 03 also printed on plate 29 30 ml PETG 33.1 mm 79.1 mm 35 g Enquire
Dropper Bottle 02 also printed on plate 29 30 ml PETG 32.5 mm 84.9 mm 35 g Enquire
Dropper Bottle 09 also printed on plate 29 50 ml PETG 36.3 mm 97.9 mm 45 g Enquire
Dropper Bottle 08 also printed on plate 29 50 ml PETG 34.4 mm 93.9 mm 45 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 34 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 34

Plate 34 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 34 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 34 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 10 also printed on plate 30 50 ml PETG 36.6 mm 84.5 mm 47 g Enquire
Dropper Bottle 14 also printed on plate 30 50 ml PETG 47.8 mm 85.7 mm 47 g Enquire
Dropper Bottle 15 also printed on plate 30 50 ml PETG 50.5 mm 86.1 mm 47 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Foundation Bottles

3 plates · plates 35–37

Plate 35 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again)

4 formats · all of them printed on an earlier plate as well · on catalogue page 35

Plate 35 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 35 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 35 — Dropper Bottles, 30–50 ml (the same formats as Plate 29, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 03 also printed on plate 29 30 ml PETG 33.1 mm 79.1 mm 35 g Enquire
Dropper Bottle 02 also printed on plate 29 30 ml PETG 32.5 mm 84.9 mm 35 g Enquire
Dropper Bottle 09 also printed on plate 29 50 ml PETG 36.3 mm 97.9 mm 45 g Enquire
Dropper Bottle 08 also printed on plate 29 50 ml PETG 34.4 mm 93.9 mm 45 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 36 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 36

Plate 36 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 36 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 36 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 10 also printed on plate 30 50 ml PETG 36.6 mm 84.5 mm 47 g Enquire
Dropper Bottle 14 also printed on plate 30 50 ml PETG 47.8 mm 85.7 mm 47 g Enquire
Dropper Bottle 15 also printed on plate 30 50 ml PETG 50.5 mm 86.1 mm 47 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 37 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 37

Plate 37 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 37 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 37 — Dropper Bottles, 50 ml (the same formats as Plate 30, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 14 also printed on plate 30 50 ml PETG 47.8 mm 85.7 mm 47 g Enquire
Dropper Bottle 15 also printed on plate 30 50 ml PETG 50.5 mm 86.1 mm 47 g Enquire
Dropper Bottle 10 also printed on plate 30 50 ml PETG 36.6 mm 84.5 mm 47 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Sloped-Shoulder Bottles

8 plates · plates 38–45

Plate 38 — Lotion Bottles, 100–150 ml

3 formats · on catalogue page 38

Plate 38 — Lotion Bottles, 100–150 ml — the formats on this catalogue page, photographed together as published.
Plate 38 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 38 — Lotion Bottles, 100–150 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 03 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Lotion Bottle 06 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 09 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 39 — Lotion Bottles, 100–150 ml (the same formats as Plate 38, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 39

Plate 39 — Lotion Bottles, 100–150 ml (the same formats as Plate 38, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 39 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 39 — Lotion Bottles, 100–150 ml (the same formats as Plate 38, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 03 also printed on plate 38 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Lotion Bottle 06 also printed on plate 38 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 09 also printed on plate 38 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 40 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml

6 formats · 3 of them printed on an earlier plate as well · on catalogue page 40

Plate 40 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml — the formats on this catalogue page, photographed together as published.
Plate 40 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 40 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 09 also printed on plate 38 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire
Lotion Bottle 06 also printed on plate 38 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 03 also printed on plate 38 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Dropper Bottle 11 50 ml PETG 40.1 mm 87.7 mm 47 g Enquire
Dropper Bottle 04 30 ml PETG 35.2 mm 78.9 mm 35 g Enquire
Cream Jar 07 50 g PETG 72.0 mm 53.0 mm 50 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 41 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again)

6 formats · all of them printed on an earlier plate as well · on catalogue page 41

Plate 41 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 41 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 41 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 07 also printed on plate 40 50 g PETG 72.0 mm 53.0 mm 50 g Enquire
Dropper Bottle 04 also printed on plate 40 30 ml PETG 35.2 mm 78.9 mm 35 g Enquire
Dropper Bottle 11 also printed on plate 40 50 ml PETG 40.1 mm 87.7 mm 47 g Enquire
Lotion Bottle 03 also printed on plate 38 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Lotion Bottle 06 also printed on plate 38 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 09 also printed on plate 38 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 42 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again)

6 formats · all of them printed on an earlier plate as well · on catalogue page 42

Plate 42 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 42 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 42 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Dropper Bottle 04 also printed on plate 40 30 ml PETG 35.2 mm 78.9 mm 35 g Enquire
Dropper Bottle 11 also printed on plate 40 50 ml PETG 40.1 mm 87.7 mm 47 g Enquire
Lotion Bottle 03 also printed on plate 38 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Lotion Bottle 06 also printed on plate 38 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 09 also printed on plate 38 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire
Cream Jar 07 also printed on plate 40 50 g PETG 72.0 mm 53.0 mm 50 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 43 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again)

6 formats · all of them printed on an earlier plate as well · on catalogue page 43

Plate 43 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 43 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 43 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 07 also printed on plate 40 50 g PETG 72.0 mm 53.0 mm 50 g Enquire
Dropper Bottle 04 also printed on plate 40 30 ml PETG 35.2 mm 78.9 mm 35 g Enquire
Dropper Bottle 11 also printed on plate 40 50 ml PETG 40.1 mm 87.7 mm 47 g Enquire
Lotion Bottle 03 also printed on plate 38 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Lotion Bottle 06 also printed on plate 38 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 09 also printed on plate 38 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 44 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again)

6 formats · all of them printed on an earlier plate as well · on catalogue page 44

Plate 44 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 44 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 44 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Cream Jar 07 also printed on plate 40 50 g PETG 72.0 mm 53.0 mm 50 g Enquire
Dropper Bottle 04 also printed on plate 40 30 ml PETG 35.2 mm 78.9 mm 35 g Enquire
Dropper Bottle 11 also printed on plate 40 50 ml PETG 40.1 mm 87.7 mm 47 g Enquire
Lotion Bottle 03 also printed on plate 38 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Lotion Bottle 06 also printed on plate 38 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 09 also printed on plate 38 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 45 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again)

6 formats · all of them printed on an earlier plate as well · on catalogue page 45

Plate 45 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 45 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 45 — Dropper and Lotion Bottles, with a 50 g Cream Jar, 30–150 ml (the same formats as Plate 40, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 09 also printed on plate 38 150 ml PETG 46.7 mm 141.8 mm 65 g Enquire
Lotion Bottle 06 also printed on plate 38 120 ml PETG 45.3 mm 132.0 mm 65 g Enquire
Lotion Bottle 03 also printed on plate 38 100 ml PETG 43.8 mm 125.3 mm 65 g Enquire
Dropper Bottle 11 also printed on plate 40 50 ml PETG 40.1 mm 87.7 mm 47 g Enquire
Dropper Bottle 04 also printed on plate 40 30 ml PETG 35.2 mm 78.9 mm 35 g Enquire
Cream Jar 07 also printed on plate 40 50 g PETG 72.0 mm 53.0 mm 50 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Round-Shoulder Bottles

4 plates · plates 46–49

Plate 46 — Lotion Bottle, 80 ml

1 format · on catalogue page 46

Plate 46 — Lotion Bottle, 80 ml — the formats on this catalogue page, photographed together as published.
Plate 46 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 46 — Lotion Bottle, 80 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 01 80 ml PETG 45.7 mm 97.4 mm 55 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 47 — Lotion Bottle, 80 ml (the same formats as Plate 46, photographed again)

1 format · all of them printed on an earlier plate as well · on catalogue page 47

Plate 47 — Lotion Bottle, 80 ml (the same formats as Plate 46, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 47 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 47 — Lotion Bottle, 80 ml (the same formats as Plate 46, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 01 also printed on plate 46 80 ml PETG 45.7 mm 97.4 mm 55 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 48 — Dropper and Lotion Bottles, 15–180 ml

3 formats · 1 of them printed on an earlier plate as well · on catalogue page 48

Plate 48 — Dropper and Lotion Bottles, 15–180 ml — the formats on this catalogue page, photographed together as published.
Plate 48 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 48 — Dropper and Lotion Bottles, 15–180 ml: the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 10 180 ml PETG 47.9 mm 153.2 mm 65 g Enquire
Lotion Bottle 01 also printed on plate 46 80 ml PETG 45.7 mm 97.4 mm 55 g Enquire
Dropper Bottle 01 15 ml PETG 31.3 mm 63.0 mm 25 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 49 — Dropper and Lotion Bottles, 15–180 ml (the same formats as Plate 48, photographed again)

3 formats · all of them printed on an earlier plate as well · on catalogue page 49

Plate 49 — Dropper and Lotion Bottles, 15–180 ml (the same formats as Plate 48, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 49 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 49 — Dropper and Lotion Bottles, 15–180 ml (the same formats as Plate 48, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Lotion Bottle 10 also printed on plate 48 180 ml PETG 47.9 mm 153.2 mm 65 g Enquire
Lotion Bottle 01 also printed on plate 46 80 ml PETG 45.7 mm 97.4 mm 55 g Enquire
Dropper Bottle 01 also printed on plate 48 15 ml PETG 31.3 mm 63.0 mm 25 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Shampoo & Body Wash Bottles

3 plates · plates 50–52

Plate 50 — Shampoo Bottles, 300–400 ml (2 of the formats on Plate 6, photographed again)

2 formats · all of them printed on an earlier plate as well · on catalogue page 50

Plate 50 — Shampoo Bottles, 300–400 ml (2 of the formats on Plate 6, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 50 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 50 — Shampoo Bottles, 300–400 ml (2 of the formats on Plate 6, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Shampoo Bottle 01 also printed on plate 6 300 ml PETG 62.2 mm 125.3 mm 65 g Enquire
Shampoo Bottle 02 also printed on plate 6 400 ml PETG 67.8 mm 151.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 51 — Shampoo Bottles, 300–400 ml (the same formats as Plate 50, photographed again)

2 formats · all of them printed on an earlier plate as well · on catalogue page 51

Plate 51 — Shampoo Bottles, 300–400 ml (the same formats as Plate 50, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 51 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 51 — Shampoo Bottles, 300–400 ml (the same formats as Plate 50, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Shampoo Bottle 01 also printed on plate 6 300 ml PETG 62.2 mm 125.3 mm 65 g Enquire
Shampoo Bottle 02 also printed on plate 6 400 ml PETG 67.8 mm 151.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Plate 52 — Shampoo Bottles, 300–400 ml (the same formats as Plate 50, photographed again)

2 formats · all of them printed on an earlier plate as well · on catalogue page 52

Plate 52 — Shampoo Bottles, 300–400 ml (the same formats as Plate 50, photographed again) — the formats on this catalogue page, photographed together as published.
Plate 52 of 52: the catalogue's own group photograph, cropped to the product band. Its page header, logo, page number and model-code row are not reproduced; the products themselves are as photographed.
Plate 52 — Shampoo Bottles, 300–400 ml (the same formats as Plate 50, photographed again): the figures the catalogue prints for this page
Format Capacity Body material Diameter (Ø) Height Weight Enquiry
Shampoo Bottle 01 also printed on plate 6 300 ml PETG 62.2 mm 125.3 mm 65 g Enquire
Shampoo Bottle 02 also printed on plate 6 400 ml PETG 67.8 mm 151.0 mm 65 g Enquire

Every figure above is the value the catalogue prints for that format. Where it gives one weight without saying whether that is the empty bottle or the filled one, this page prints it the same way rather than guessing. Capacity and dimensions are re-confirmed against your formula and fill weight before tooling.

Where These Come From

The photographs and the figures on this page come from the product catalogue of a manufacturing partner in our network. Partner identities stay confidential to us. Each photograph is the catalogue's own group shot, cropped to the product band and retouched so that the page furniture — its header, its logo, its page number and its model-code row — is not reproduced; the products themselves are as photographed, including the decorations the source shot them in. The figures are the values each plate publishes; where the catalogue contradicts itself between two plates of the same format, both are reproduced as printed rather than reconciled. Capacity and dimensions are confirmed against your formula and fill weight before tooling. We do not hold these as stock and we do not sell them at a catalogue price — each is made to order, with our quality control and project management on top. Where the catalogue prints one weight figure without saying what it covers, the page prints it the same way rather than guessing.

Not sure how a first order works? See how we confirm a minimum, how sampling works, and the full procurement path.

Send Us the Format You Have in Mind

Tell us the format, the market and the finish. We will come back with what is achievable — material, decoration, sample timing and quantity, confirmed for your project.

Request a Quote Request a Sample

Stay Ahead in Packaging

Subscribe for product updates, industry news, and insider tips.

Chat with us
